1.5Ton Mini Rubber Track Carrier Transporter Dumper Truck

Categories Track Transporter
Brand Name: JINZHOU SHITAN
Model Number: Track Transporter
Certification: ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Delivery Time: 7-12 days
Packaging Details: Standard Export Package
Drive Wheel: 1.5T
Capacity (Load): 1500 kg
Horsepower: 10 hp
Condition: New
Transmission Type: Automatic
Fuel Type: Petrol / Gasoline
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

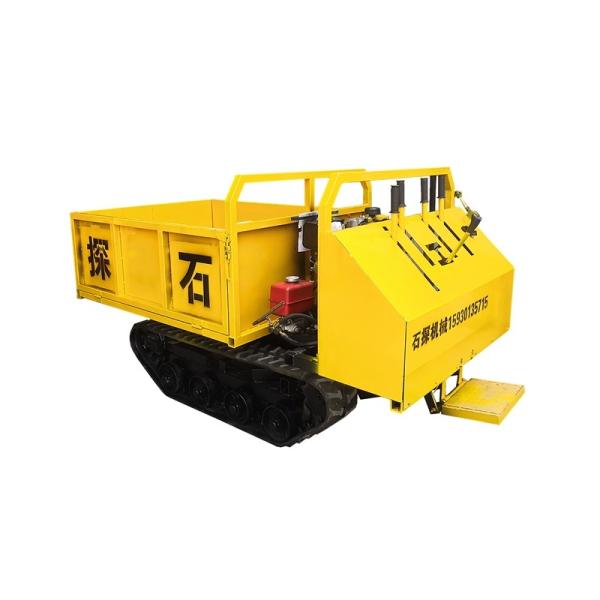

1.5Ton Mini Rubber Track Carrier Transporter Dumper Truck

1.5Ton Mini Rubber Track Carrier Transporter Dumper Truck


Product Introduction


Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.


Product parameters


Type : 1.5TBucket size: 1500*1100*500 mm
Size: 2400*1100*1400mmCrawler material: Rubber material
Track ground length: 1500mmLoading &unloading method: Hydraulic dump
Motor size: 186Gear type: drawbar
Gear: +3 forward gear+1 reverse gearThe height from the bottom of the bucket to the ground: 500 mm
Steering method: Clutch brake steeringStart method: Electric start
Standing slope angle: 35 degreeCrawler width: 720mm

Main Features


1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution


All-Terrain Tracked Carrier


Tracked carrier is also called hydraulic crawler dump truck or crawler dumper. It is very popular for the complex road conditions such as swamp, river bank, desert, paddy field, tropical rain forest, snow field and ice, muddy construction site and other complete topography. The wide crawler has small pressure to the ground, so it can go thorough easily even with heavy load.
It has good performance and strong ability to climb slope. The tracked carrier is compact and flexible which is very easy to operate.
Hydraulic lifting and unloading greatly reduce labor intensity and improve transportation efficiency.
