Stainless Steel Metal Fiber Laser Marking Machine For Aluminum 7000mm/s

Categories Metal Cutting Machine
Brand Name: wadley
Model Number: WDL-205B
Certification: ISO 9001
Place of Origin: China
MOQ: 1 set
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 sets / month
Delivery Time: 15 working days
Packaging Details: wooden case
Condition: New
Cooling Mode: Air Cooling
Marking Speed: 0-7000mm/s
Power Supply: 220V/50Hz
Marking Depth: 0 ~0.5mm
Laser Type: Fiber Laser
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

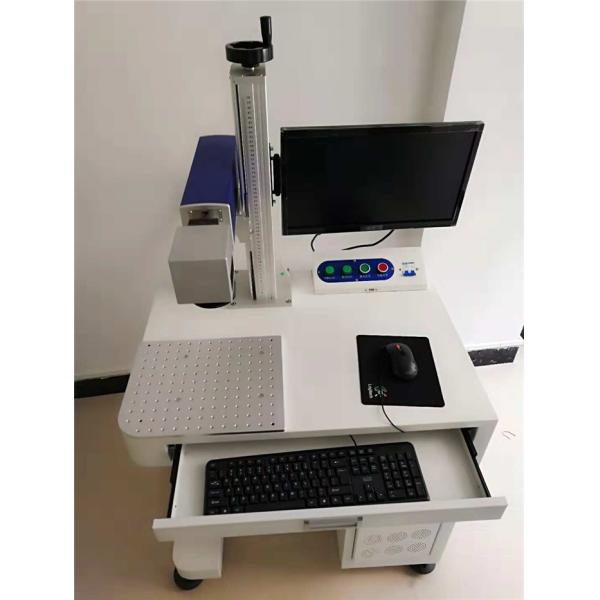

Stainless Steel Metal Fiber Laser Marking Machine For Aluminum 7000mm/s


Stainless Steel Metal Fiber Laser Marking Machine For Aluminum



Applicable Industry:


Phone key, light penetration key, electronic parts and components, integrated circuit (IC), electrician electric appliance, communication products, sanitary wares, tool accessories, glasses and watches, jewelry, auto parts, buckles, kitchenware and stainless teel products industries.


Description:


Use the original import isolation for optical fiber laser windon protection, enhance the stability and laser lifespan.


Laser beam quality is much better than traditional solid laser marking machine, which is the base model (TEM00) output, and diameter of Foucus flare is less than 20 um. Divergence Angle is a quarter of the laser diode pump. Especially suitable for fine, precision marking.


No need any maintenance and long hours lifespan, small volume, suitable for poor working condition.





Model No.WDL-400A
TypePortable
ComputerNot includes PC
IPG Series:Pulsed, High Energy Ytterbium Fiber Lasers
Nominal average output power10W - 30W For PEDB-400A /400B /400C; 10W - 50W For PEDB-400D
Central emission wavelength:1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM)<10 nm
Pulse width, (FWHM)100 ns
Pulse Repetition Rate* kHz20-80 kHz
Energy per pulse (PRR = 20 kHz)0.95 mJ
Typical beam quality, M2<1.8
Output fiber delivery length3m
Operating voltage:220V
Scanning Speed:0-7000mm/s
Marking Speed:0-5000mm/s
Marking size:110mm×110mm (F-theta 160)
Spot size:≤ 40 micron (F-theta 160)
Cooling unit:Air cooled
Pilot laser:650nm diode laser, visible red light for marking guide
Continuous working time:≥16h
Net Dimensions:70*20*50cm
Net Weight:44 kgs
Gross Weight:60 kgs
