Durable Defensive Bastion Military Hesco Barriers For Sand Wall

Categories Military Barrier
Brand Name: SHUXIN
Model Number: Mil 10
Certification: ISO:9001
Place of Origin: CN
MOQ: 100 unit
Price: Negotiated
Payment Terms: Western Union, L/C, T/T,Paypal
Supply Ability: 200 unit per week
Delivery Time: 10 Working Days
Packaging Details: pallet
Material: Q195 Low Carbon Wire
Mesh wire: 5.0mm
Spring Wire: 4.0mm
mesh: 3"x3"
Surface treatment: Hot Dipped Galvanized
Geotextile: 300gsm Sand Color,Green Color
Application: Military Protection
Main Market: Kenya, Africa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

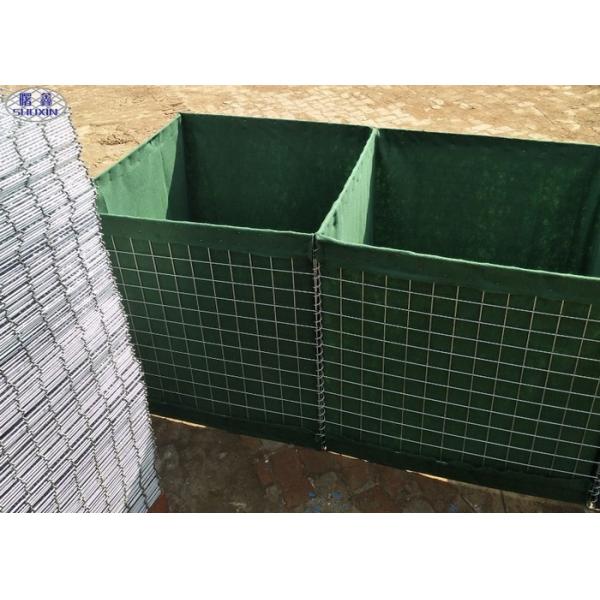

Durable Defensive Bastion Military Hesco Barriers For Sand Wall

Galvanized Defensive Bastion Hesco Barriers For Military Sand Wall

Hesco barrier also named as Hesco bastion, Hesco defense wall, Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall for military use, Wire mesh gabion box, Stone cage etc.

Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint together .

Detail Specification

Wire diameter: 4mm, 5mm
Mesh size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated
Packing: packed in pallet then wrapped with shrink film
Hesco Barrier Specification

ModelHeightWidthLengthInternal Cells
SX-1(Mil 1)54”(1.37m)42”(1.06m)32’9”(10m)5+4=9 cells
SX-2(Mil 2)24”(0.61m)24”(0.61m)4’(1.22m)2 cells
SX-3(Mil 3)39”(1.0m)39”(1.0m)32’9”(10m)5+5=10 cells
SX-4(Mil 4)39”(1.0m)60”(1.52m)32’9”(10m)5+5=10 cells
SX-5(Mil 5)24”(0.61m)24”(0.61m)10’(3.05m)5 cells
SX-6(Mil 6)66”(1.68m)24”(0.61m)10’(3.05m)5 cells
SX-7(Mil 7)87”(2.21m)84”(2.13m)91’(27.74m)5+4+4=13 cells
SX-8(Mil 8)54”(1.37m)48”(1.22m)32’9”(10m)5+4=9 cells
SX-9(Mil 9)39”(1.0m)30”(0.76m)30’(9.14m)6+6=12 cells
SX-10(Mil 10)87”(2.21m)60”(1.52m)100’(30.5m)5+5+5+5=20 cells
SX-11(Mil 11)48”(1.22m)12”(0.30m)4’(1.22m)2 cells
SX-12(Mil 12)84”(2.13m)42”(1.06m)108’(33m)5+5+5+5+5+5=30 cells
SX-19(Mil 19)108”(2.74m)42”(1.06m)10’5”(3.18m)6 cells


Application

1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.

4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
