| Categories | Aluminum Coil Tubing |
|---|---|
| Place of Origin: | Anhui, China (Mainland) |
| Brand Name: | TATATO |
| Model Number: | TA-T12 |
| Supply Ability: | 800 tons per month |
| Packaging Details: | wooden pallet or according to customer's request |
| MOQ: | 1000 kgs |
| Price: | Negotiable |
| Type: | Refrigerator Parts |
| Condition: | New |
| Application: | Refrigerator Part |
| Material: | Aluminum |
| Certificate: | ROHS |
| Item: | Refrigerator Spare Parts |

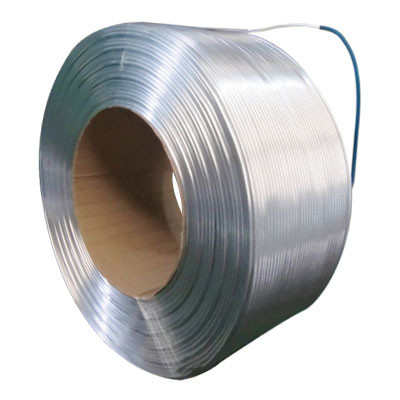

| Product Name: | Aluminum tube |
| Color: | White |
| Usage: | Refrigetor |
| Refrigerant: | R134a/R600A/R404A |
| Port: | Wuhu, Nanjing, Shanghai |
| No. | Inspect Item | Standard |
| 1 | Alloy & Temper | 1050,1060,1070&H112 |
| 2 | Surface quality | Smooth; no crack, corrosion and impurity |
| 3 | Outer Diameter | 4mm-19mm |
| 4 | Wall thickness | 0.5-1.5mm |
| 5 | Gas sealing | Filling with nitrogen gas(>1.00Mpa), keep the pressure for at least 30 minutes, to see the pressure gauge with decreasing or not. No leakage is accepted |
| 6 | Bending | Bending at 180° by bending radius, there is no visible crack |
| 7 | Flattening | Pressing tube to be flat, no visible crack to be found |
| 8 | Cleanness | Clean the inner wall surface, without any pollution found, total impurity cotent remain 5-60mg/squiare meter |
| 9 | Tensile strength | >65MPA |
Workshop

Customer

Certification

Packing

TAITONG REFRIGERATION with over years develpment of the parts and
components for refrigeraton. now becoming the biggest professional manufactuer
for evaproators , condensers and all type of the pipe system for refrigerators
in the fifth place in comprehensive ranking among the industry of the same kind.
Nearly 100,000 saqure meters
More than 1000 emplyees
Manage own brand TATATO
Obtain 100 patents
ISO9001-2008,ISO14001-2004 certificated

Quanlity control
The central laboratory is equipped with the device which made by the world's top manufacturer.
They can carry out the test such as :the product composition analysis, mechanical performanceanalysis,
metallographic analysis, environmental simulation, heat test, testing analysis, corrosionanalysis, project.
