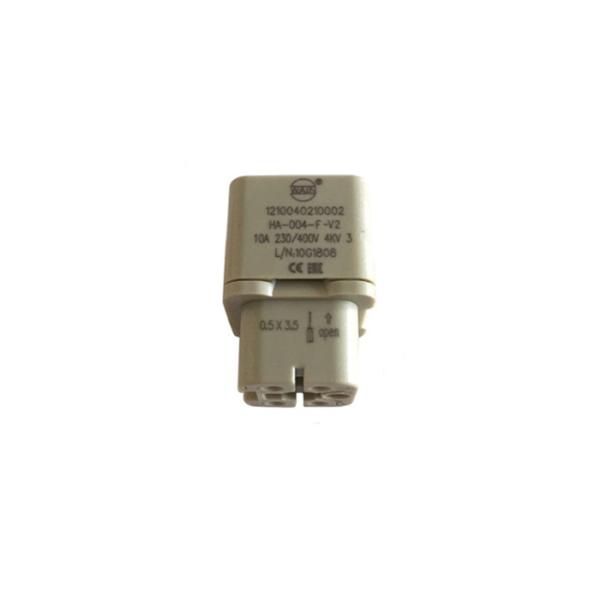

HA-004-F Pin Connector screw terminal connector

5Pin female insert parameter:

5Pin female insert

Female insert parameter:

Inserts
Number of contacts	4+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage conductor	230/400V
---Rated impulse voltage	4kV
---Pollution degree	3
---or	10A 250V 4kV 3
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Spring terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14

More information, please contact us anytime!
