| Brand Name: | Shitong |
| Model Number: | C80-300 |
| Certification: | CE/ISO 9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | 16500$ |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS/MONTH |
| Delivery Time: | 30 DAYS |
| Packaging Details: | THE MAIN MACHINE IS NUDE |
| Voltage: | 380V Or As Customize |
| Weight: | 11Ton |
| Warranty: | 2 Years |
| Production capacity: | 8-12m/mins |
| name: | Lip Channel Roll Forming Machine |
| Roller material: | Cr12mov |
| Company Info. |
| BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

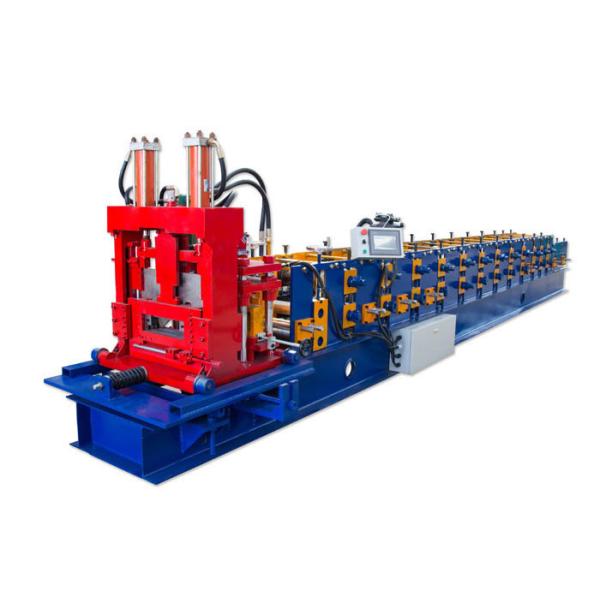

Flexible Operation Metal Steel Lipped Channel C Z U Purlin Roll Forming Machine
Warranty: 2 Years
Power(W): 15kw
Certification: CE/ISO9001, ISO
After-sales Service Provided: Free spare parts, Field installation, commissioning and training,
Applicable Industries: Manufacturing Plant
Work Pressure: Normal Pressures
Production Capacity: 8-12m/min
Voltage: 380V/50HZ 3Phase(as Customer's Request)
Dimension(L*W*H): 8m*1.1m*1.2m
Weight: 7.5T
Key Selling Points: Automatic
Color: customized
Product name: C Shaped Roll Forming Machine
Machine parameter
| rticle No. | Item Name | Specification |
| 1 | Effective width | 80-300 mm |
| 2 | Thickness of feeding material | 1-3 mm coil sheet |
| 3 | Roller station | 8-12 stations |
| 4 | Shaft Diameter | 80 mm |
| 5 | Productivity | 8-12 m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 8tons |
| 9 | length | 8 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 11kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1-2 inch |
| 16 | Cutting system | Hydraulic cutte |
main machine pictures



|   |
