| Categories | Motor Shaft Bushing |
|---|---|
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Delivery Time: | 45 days usually |
| Packaging Details: | Carton then Pallet, or pallet directly |
| product name: | motor shaft bushing |
| Material: | Aluminum |
| Surface treatment: | Anodize, Oxidation,Nickel plating, Zinc plating, Chrome plating, High polishing |
| Roughness: | Ra1.0 |
| Tolerance: | +/-0.01, +/-0.005 |
| Used: | Many kinds of industry |
| Size: | custom |
| feature: | Corrosion Resistant |
| Brand Name: | Wisdom |
| Certification: | ISO |

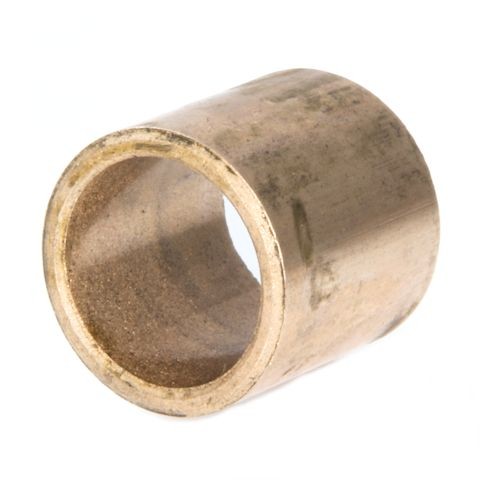

Corrosion resistant Aluminum / Steel Motor Shaft Bushing
Description:
Shaft bushings for plain bearing with perfect performances .
A Durable
B Low friction
C Low wear
D Resistant to high temperatures
E Corrosion resistant.
F High load-carrying capacity
Specifications:
| Item | motor shaft bushing ,steel and zinc coating bolt bushing |
| certification | ISO9001:2008 ,BV certificate |
| Machining equipments | CNC center, CNC milling machine, CNC turning machine, CNC drilling machine, CNC lathes, lathe, 4 axis machine etc. |
| Materials | Aluminum, Steel, Stainless steel, Brass, Copper, Bronze, ABS, PC, PO, POM, Nylon, Teflon etc. |
| Surface finish | Anodized, Oxide, Plating, Brushing, Polishing, Blackened, Powder coating, Sandblasting, Laser engraving etc. |
| Inspection Equipment | CMM, Projection, Calipers, Micro caliper, Thread Micro caliper, Pin gauge, Caliper gauge, Pass meter, Pass meter etc. |
| Drawing format | PDF, DWG/DXF, IGS/STP etc |
Tolerance for above different lengths
| Length | Tolerance |
| 4~12 | ±0.25 |
| 12~60 | ±0.5 |
| 60~100 | ±0.75 |
Tolerances for Shaft Bushings
Normally, both ends of Shaft bushings are with chamfer for free of scratching during installation and operation .
| T | Outside Chamfer | Inside Chamfer | |
| Machined | Rolled | ||
| 0.75 | 0.5±0.3 | 0.5±0.3 | -0.4 -0.1 |
| 1 | 0.6±0.4 | 0.6±0.4 | -0.5 -0.1 |
| 1.5 | 0.6±0.4 | 0.6±0.4 | -0.7 -0.1 |
| 2 | 1.2±0.4 | 1.2±0.4 | -0.7 -0.1 |
| 2.5 | 1.8±0.6 | 1.8±0.4 | -1.0 -0.2 |
Shaft bushings are widely used to various fileds with bearing operations .
★ Truck and Car
★ Train
★ Machine
★ Vessel
★ Aerospace
★ Sport equipments
★ Airplane
|
