| Categories | High Power LED Street Light |
|---|---|
| Brand Name: | URILIC |
| Model Number: | U-SL29-S-30W-50W |
| Certification: | ETL, DLC, ENEC, TUV, CE |
| Place of Origin: | SHENZHEN |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
| Delivery Time: | 5-15 days |
| Packaging Details: | Carton box |
| Product Name: | Small Power LED Street Light |
| Power: | 30W-50W |
| LEDs Qty.: | 36 pcs |
| Input Voltage: | 90-305V/249-528V AC,50-60Hz |
| Housing Material: | Aluminium 6063-T5 |
| Net Weight: | 4.6kg |
| Light Size: | 607x232x122mm |
| Packing Size: | 656x282x178mm |
30W small Power LED Street Light SMD Outdoor Light Car Park, Village Road Light
Description:
LED is an energy-saving street light, and the efficiency of the driving power supply must be high. It is particularly important for the structure in which the power supply is installed in the street light fixture. Because the luminous efficiency of LED street lights decreases as the temperature of LED street lights increases, the heat dissipation of LEDs is very important. The efficiency of the power supply is high, its power consumption is small, the heat generation in the lamp is small, and the temperature rise of the street lamp is reduced. It is beneficial to delay the light decay of LED street lights.
Street lamps, street lamp manufacturers, professional custom production of various lamps, spot supply, quality assurance, transparent price, factory direct sales, fast delivery, welcome friends from all walks of life to consult and buy.
Quick Detail:
High pressure die-cast aluminum alloy housing from 30W to 200W.
Substantial friction resistant powder spraying process surface treatment.
Adopt multi-chips package 5050 LEDs. Stable performance,flip chip technology, single unit’s damage won't affect others' normal work.
Optical lens design. Type II-M,III-M,IV-S optional.Uniform lighting distribution apply to different lighting projects.
Excellent operating temperature -40~50°C
-10~10° adjustable bracket applicable different mounting arm.
With excellent housing design reach IP66/IK08 rating.
Buckle design realize tool-free maintenance.

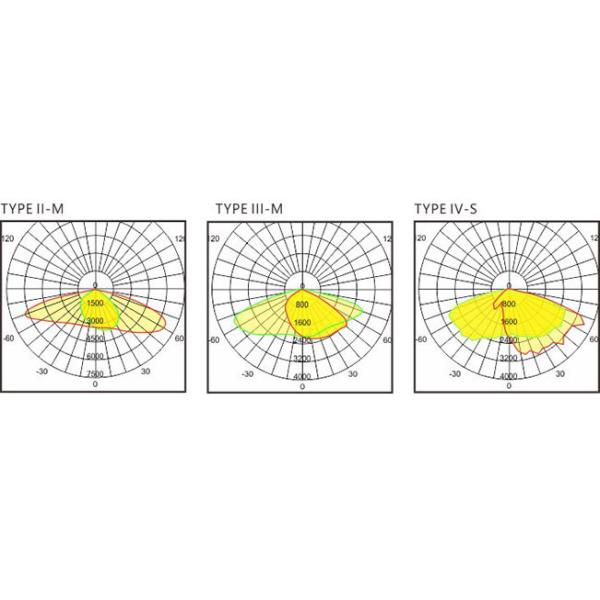

Distribution Curve:
Product Details:
| Model | U-SL29-S-30W-50W |
| Power | 30W-50W |
| Luminous efficiency | 130-140 Lm/W |
| Luminous Flux | 4050-6750 lm |
| CCT | 3000K/4000K/5000K/5500K |
| CRI | ≥70 |
| Power supply | MOSO/MEANWELL/SOSEN |
| LEDs | 5050 LED |
| LEDs Qty. | 56 pcs |
| Beam angle | Type II-M,III-M,IV-S |
| IP/IK rate | IP66,IK08 |
| Working voltage | 90-305V/249-528V AC,50-60Hz |
| Working temperature | -40°C~50°C, 20%~90% H.R. |
| Storage temperature | -40°C~85°C, 10%~90% H.R. |
| Power Efficiency | 90% |
| PF | >0.95 |
| Lifespan | >50000H |
| Light pole size | Φ60mm |
| Housing material | Aluminium 6063-T5 |
| Lamp size | 607*232*122 mm (±5mm) |
| Package size | 656*282*178 mm (±5mm) (1PCS) 656*282*268 mm (±5mm) (2PCS) |
| Net weight | 4.6 kg (±0.1kg) |
| Inclination angle | Horiziontal & Vertical ±10° |

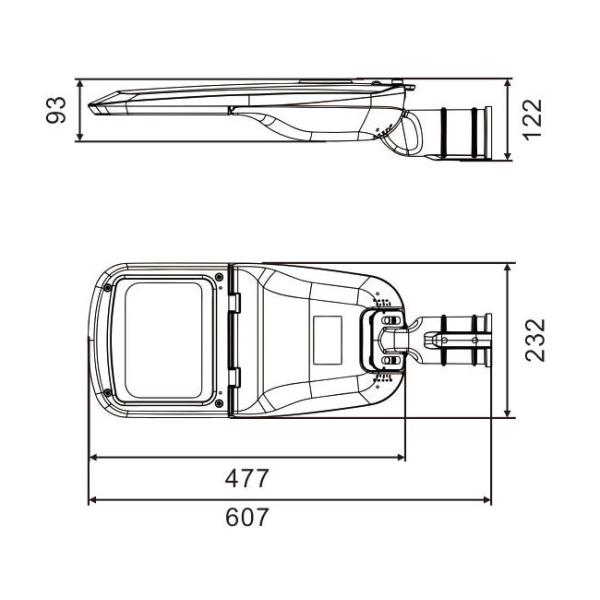

Mechanical Drawing:
Installation Diagram:
Applications:
Main scope of application: community, school, square, beautiful countryside, tourist attractions, parking lot, rural solar street lights, etc. Applicable height: 3-10m. Car Park, Village Road Light.
|
