| Categories | Alloy Steel Seamless Pipes |
|---|---|
| Model Number: | 400mm |
| Certification: | PED , ISO , CE |
| Place of Origin: | USA |
| MOQ: | 1 tons |
| Price: | 800 usd/ton |
| Payment Terms: | L/C, D/A, T/T, D/P, MoneyGram, Western Union |
| Supply Ability: | 10000 ton in stock |
| Delivery Time: | 5-8 days |
| Packaging Details: | Standard exportd packaged |
| Steel garde: | 20MnV6 |
| Size: | 32mmto 4000mm |
| Length: | as your requirements |
| Surface treatment: | Galvanized,customerized |
| Application: | Structure Pipe |
| Technique: | Hot Rolled,Cold Drawn |
| Company Info. |
| BEST PIPELINE EQUIPMENT CO.,LTD |
| View Contact Details |
| Product List |
The weather is Getting hotter day by day , the virus will be disapper , the 28MnV6 Steel Pipe price will risen soon

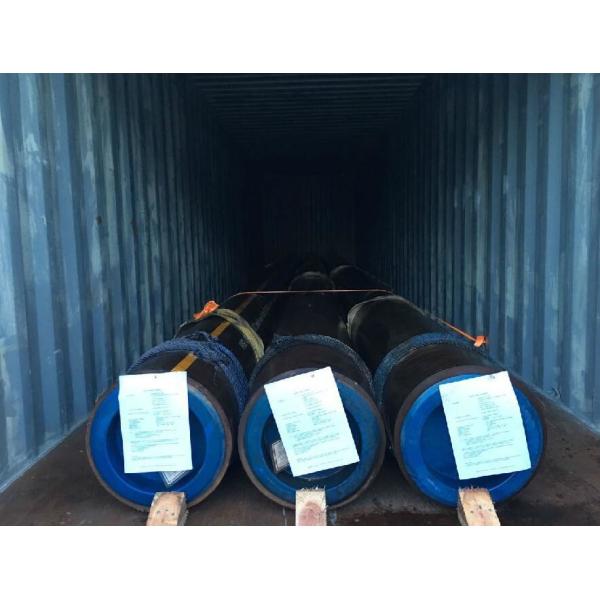

28MnV6 seamless Hollow bars
Usage : bars for machining For turning with short chip breaking.
The finished turned
part is suitable for a wide range of heat treatments and coatings
Our seamless Hollow bars steel grade : 28MnV6
Size :1inch to 48inch
Wall thickness : 2.5-2500 mm
28MnV6 hollow bar chemical composition :
| Min % | Max % | |
| Carbon | 0.16 | 0.22 |
| Silicon | 0.10 | 0.35 |
| Manganese | 1.130 | 1.60 |
| Vanadium | 0.08 | 0.15 |
| Phosphorous | 0 | 0.03 |
| Sulphur | 0.02 | 0.04 |
| 28MnV6 hollow bar Mechanical Property Requirements - As Supplied in the Black Hot Rolled Condition | ||
Tensile Strength Mpa Min. Wall Thickness (mm) | <16 | 620 |
| <25 | 310 | |
| >25 | 550 | |
0.2% Yield Strength Mpa Min. Wall Thickness (mm) | <16 | 470 |
| <25 | 460 | |
| <30 | 430 | |
| <40 | 420 | |
| <50 | 410 | |
| <70 | 400 | |
| Elongation on 5.65√S0 % Min | 18 | |
| 28MnV6 hollow bar Hardness Brinell Min | 180 | |
| 28MnV6 hollow bar Typical Mechanical Properties - As Supplied in the Black Hot Rolled Condition | ||
| Tensile Strength Mpa | 690 | |
| Yield Strength Mpa | 500 | |
| Elongation % | 21 | |
| Hardness HB | 210 | |
| 28MnV6 hollow bar Typical (Minimum) Mechanical Properties - Water Quenched at 925 oC and Tempered at 580 oC. | ||
Tensile Strength Mpa Wall Thickness (mm) | <20 | 750 |
| <25 | 700 | |
| <30 | 650 | |
0.2% Yield Strength Mpa Min. Wall Thickness (mm) | <20 | 650 |
| <25 | 620 | |
| <30 | 570 | |
Elongation % Wall Thickness | <20 | 16 |
| >20 | 17 | |
Impact +20oC 0oC -20oC J | 40 | |
| 32 | ||
| 28 | ||
|
