| Categories | Steel Fitting |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | WP-S S32750 |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Place of Origin: | China |
| MOQ: | 100 KG |
| Price: | Discussion |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | According to client requirments |
| Delivery Time: | 15-30 Days |
| Packaging Details: | According to client requirements / Wooden case packing |
| Standard: | ASTM A815, ASME SA815 |
| Material grade: | WP-S S32750, S32760 |
| Type: | Seamless, Welded |
| Sizes: | 1/8" - 48" |
| Wall Thickness: | SCH 5S - SCH XXS |
| Degree: | 45Deg, 90Deg, 180Deg |
| Radius: | Long Radius, Short Radius |
| Applications: | Construction,Gas and Oil Plants,Air,Steam,Petroleum Gas Water |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

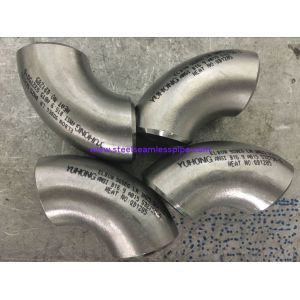

Water Treatment ASTM A815 WP-S S32750, S32760 Stainless Steel Fittings Buttweld 90° LR Elbow
ASTM A815 WPS32750, S32760 Super Duplex Stainless Steel Fittigs, such as elbows, tees, reducers, caps, are widely used invarious applications, like water treatment, seawater desalination, marine equipments, shipping buildings, chemical industry, petrochemical industry, and so on. YUHONG GROUP is professional for Duplex and Super Duplex pipe, tube, fitting, flange for many projects . Every year we export duplex and super duplex fittings and flanges to more than 30 countries.
Pipe & Pipe Fittings
Seamless Pipe in Titanium Grades 1, 2, 5, 7, 9 and 12
Seamless Pipe in Duplex UNS S31803 & S32205
Seamless Pipe in Super Duplex UNS S32750 & S32760
Seamless Pipe in 6 Moly UNS S31254, N08925 & N08926
Seamless Pipe in Copper Nickel UNS C70600 C70620 C7060X C7150 C71520 C71640
Welded Pipe in Duplex UNS S31803 & S32205
Welded Pipe in Super Duplex UNS S32750 & S32760
Welded Pipe in 6 Moly UNS S31254, N08926 & N08925
Welded Pipe in Copper Nickel UNS C70600 C70620 C7060X C7150 C71520 C71640
Seamless & Welded Butt-weld fittings in Titanium Grades 1, 2, 5, 7, 9 and 12
Seamless & Welded Butt-weld fittings in Duplex UNS S31803 & S32205
Seamless & Welded Butt-weld fittings in Super Duplex UNS S32750 & S32760
Seamless & Welded Butt-weld fittings in 6 Moly UNS S31254, N08925 & N08926
Seamless & Welded Butt-weld fittings in Copper Nickel UNS C70600 C70620 C7060X C7150 C71520 C71640
| Butt Weld Fittings | Long & Short Radius Elbows |
| Long & Short Radius Return Elbow | |
| Concentric & Eccentric Tees | |
| Equal & Reducing Tees | |
| Stub Ends | |
| End Caps |
| High Pressure Fittings | 150# 300# 6000# 9000# | Socket Weld Fittings Threaded Fittings | Elbows |
| Tees | |||
| Couplings | |||
| End Caps | |||
| Concentric & Eccentric SwageNipples |
| ANSI B.31.10 | Code for Pressure Piping | ANSI B.31.8 | Gas Transmission/Distribution Piping |
| ANSI B.31.3 | Petroleum Refinery Piping | ANSI B.36.10 | Standard for Wrought Steel Pipe |
| ANSI B.31.4 | Oil Transportation Piping | ANSI B.36.19 | Standard for Stainless Steel Pipe |
| ANSI B.31.5 | Refrigeration Piping Systems | ANSI B.16.10 | Valve Dimension Face & Ends |
| ANSI B.31.7 | Nuclear Power Piping | ANSI B.16.11 | Forged Fittings Socket Weld & Threaded |
Specifications:
| Standard | Description |
|---|
| ASTM A182/A182M | Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. |
| ASTM A403/A403M | Wrought austenitic stainless steel piping fittings. |
| ASTM A815/A815M | Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings. |
| AS 2129 | Flanges for pipes, valves and fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ANSI B16.5 | Steel pipe flanges and flanged fittings. |
| ANSI B16.9 | Factory-made wrought steel butt-welding fittings. |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. |
| ANSI B16.25 | Butt-welding ends. |
| MSS SP43 | Wrought stainless steel butt-welding fittings. |
| BS21 | Threading. |
| ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
MSS SP-43: Wrought Stainless Steel Butt Welding Fittings
BS 1640: Steel Butt Welding Pipe Fittings for petroleum Industry part
1-Wrought Carbon and ferritie Alloy Steel Fittings
BS 1965: Butt Welding Pipe Fittings for pressure purpose part 1-Carbon
Steel & Austenitic Stainless Steel
ASTM B366 - 10a Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings
ASTM A403: Wrough Autenitic Stainless Steel Pipe Fittings
ASTM A815: Wrough Ferritic, Ferritic/Autenitic and martensitic Stainless
Steel Pipe Fittings
IPS-M-PI-150: Standard for Flanges and Fittings
Materials:
Austenitic Stainless steel
ASTM A403 WP304, 304L, 304H, 310S, 316, 316L, 316H, 321, 321H, 347,
347H, 317, 317L
ASTM A182 F304, F304L, F304H, F310S, F316, F316L, F316H, F321,
F321H, F347, F347H, F348
Ferritic Steel
ASTM 815 WP27-33-429-430-430TI-446 (Duplex)
Duplex 2205, Duplex 2205, Duplex 2205, Duplex UNS S31803, Din
1.4462 EN 10088 F51
Duplex 2205 SANMAC, URANUS 45N, PREN=33, PREN=34, PREN=35, PREN=36
DIN 1.4462
Duplex-2205 UNS S31803 / UNS S32205 DIN-1.4462 EN 10088-3 PREN =
33, PREN = 34, PREN = 35
Ferritic/Austenitic Steel
UNS S331803 (Duplex)
UNS S32750-S32760-32550 (Superduplex)
Super Duplex 2507, Super Duplex 2507, Super Duplex -2507, Super
Duplex UNS S32750 F53
Super Duplex 2507 UNS S32750 DIN 1.4410 EN-10088 URANUS 47N(+)
PREN=41 Minimum
Super Duplex UNS S32760 F-55 ASTM A182 F55 SA182 F-55 DIN 1.4501
UNS 32760 F55
|
