| Categories | Electric Bolt Lock |
|---|---|
| Brand Name: | VANSHUI |
| Model Number: | EM200B |
| Certification: | CE,FCC |
| Place of Origin: | CHINA |
| MOQ: | 1PCS |
| Price: | NEGOTIATION |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C, D/A |
| Supply Ability: | 10000PCS PER MONTH |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Single package size: 25X10X4 cm,Weight:0.7KG |
| Current draw: | Starting Status 400mA;Standby Status400mA |
| Fail Safe: | Power to lock |
| Suitable for: | Application all type of door, no frame door can choose bracket |
| Holding Force: | 1000KG |
| Surface temp: | -10~+25°C(14-131F) |
| Opening mode: | 180 degree swinging door |
| Quality: | Aluminum panel with strongly style and stainless steel |
| Company Info. |
| VANSHUI ENTERPRISE COMPANY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

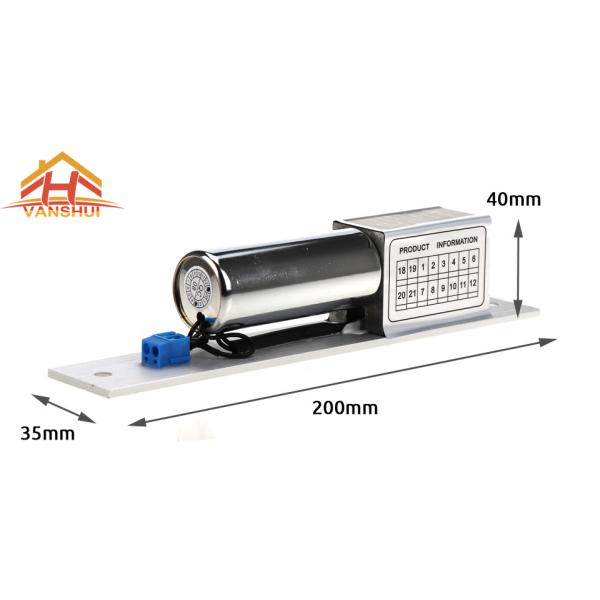

1000kg Holding Force Electric Bolt Lock For Access Control System
Features
1.Safe & Durable.
2.Low Power, Environmental Protection.
3.Long Life with 500000 cycles.
4.MOV Provides Reverse Current Protection.
5.Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt.
6.Double protection for loading current.
Specification
| Model | EB200B(Electric Bolt) |
| Lock Type | Magnetic Switch for sensor to lock |
| Power supply | 12VDC |
| Signal Output | Without signal output |
| Current draw | Starting Status 900mA |
| Standby Status 120mA | |
| Fail Safe | Power to lock |
| Door lock delay time | unavailable |
| Suitable for | Application all type of door, no frame door can choose bracket |
| Face plate | 200L×35W×40H(mm) |
| Strike plate | 90L×25W×2H(mm) |
| Holding Force | Polishing housing,1000KG Holding Force |
| Surface temp | Low temperature |
| Operating temp | -10~+25°C(14-131F) |
| Operating Humidity | 0-90%(non-condensing) |
| Opening mode | 180 degree swinging door |
| Certification | CE&FCC approved |
| Quality | Aluminum panel with strongly style and stainless steel |
| Application | Wooden door, glass door, metal door, fireproof door, etc |
| Quality Guarantee | For 2-3 years (except that man-made and force majeure) |
|
