| Categories | PMDC Motor |
|---|---|
| Brand Name: | BANGYI MACHINERY |
| Model Number: | 80ZYT180-230-80PG7-1000AB |
| Place of Origin: | China |
| MOQ: | 2PCS |
| Price: | USD130/PCS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000/MOMTH |
| Delivery Time: | 20-25 WORKING DAYS |
| Packaging Details: | CARTON/ PALLET |
| Voltage: | 24VDC |
| Rated speed: | 2100rpm, |
| Torque: | 1.43NM |
| Power: | 312w |
| Gear ratio: | 7:1 |
| IP: | 44 |

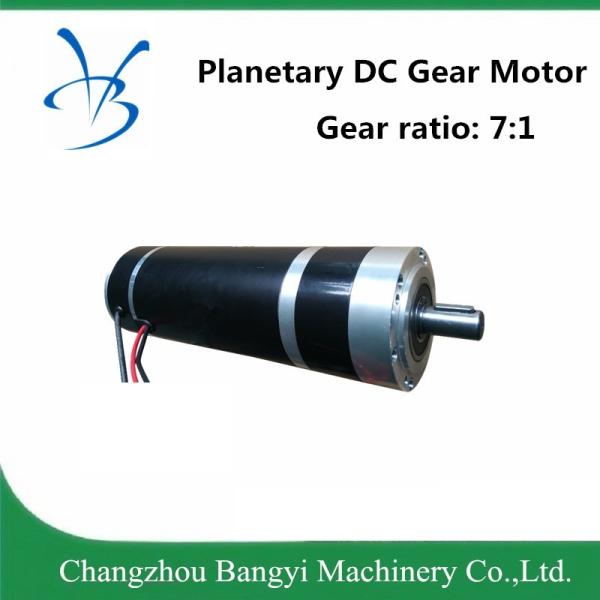

Brushed DC Motor 80ZYT
General Specifications:
Magnet: Ferrite
Insulation class: B 130°C / F155°C
Temperature rise: 75k Max
Environment temperature and humidit: +15°C ~ +35°C, 45%~ 75%
Protection & cooling: IP40& IC00
Installation: IM B14
Shafts OD: Φ13 Max
Bearing: Ball
Winding:
Voltage: 12~220VDC
Speed:900~7000rpm
Power: 80~450w
80ZYT180-230-80PG7-1000AB
Voltage: 24VDC
No-load speed:3000±10%rpm
Rated speed: 2100±10%rpm
Rated current: 17A
Rated torque: 1.43Nm
Rated power: 312W
After gear box:
Gear ratio: 7:1
Rated speed: 300±10%rpm
Rated torque: 8Nm
Rotor direction: CW
Insulation class: B
IP code: IP44
Motor specifications:
| Model | Voltage (V DC) | No Load | Rated Load | Length (mm) | Gear Ratio | |||
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | ||||
| 80ZYT180-230-80PG7-1000AB | 24V | 0.5 | 3000 | 1.43 | 17 | 2100 | 180 | 7:1 |
Remark :
Motor can produce according to customer's requirements.
So please let me know motor's voltage , rated speed ,rated torque
and power.
Then we can recommend a suitable motor for you.
|
