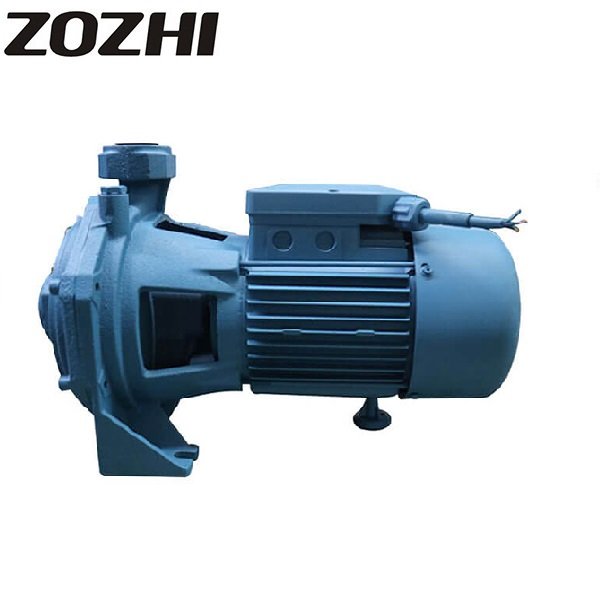

0.75KW Centrifugal Water Pump , Single Stage Volute Pump 1HP Irrigation 1.5DKM-20

Categories Centrifugal Water Pump
Brand Name: ZOZHI
Model Number: 1.5DKM-16
Certification: CE/SGS/ISO
Place of Origin: China
MOQ: 1pc
Price: negotiated
Payment Terms: T/T, L/C
Supply Ability: 30000pcs/month
Delivery Time: 25 working days after received your payment
Packaging Details: Packed in cartons or pallets
Item Name: Centrifugal Water Pump
Power: 0.75KW/1HP
Flow Max: 240 L/min
Head Max: 20m
S. HEAD: 9M
Pipe Size: 1.5"x1.5"
Rpm: 2850
weigh: 12kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

0.75KW Centrifugal Water Pump , Single Stage Volute Pump 1HP Irrigation 1.5DKM-20

0.75KW Centrifugal Water Pump, Single Stage Volute Pump 1HP Irrigation 1.5DKM-20


Centrifugal Water Pump Description:


DKM centrifugal pump is a kind of volute pump. It is used to transport clean water, thin or non-corrosive liquids. Due to the large caliber, large flow rate and low head, the volume ratio of solid impurities in water in the liquid medium does not exceed 0.1%, and the particle size is not greater than 0.2mm; can be used for irrigation system, water supply and drainage of river water, well water, etc., such as rural, aquaculture, garden water delivery, ensuring safe and convenient use.

Advantage

Compact structure
Wide range flow
Wide head range
Suitable for mildly corrosive liquids
Multiple control options
Uniform flow, stable operation, and low vibration. No special damping foundation is required.
Equipment installation, maintenance, and repair costs are low.


Application:

Liquid transfer
cooling system
Industrial cleaning system
Aquaculture farm
Fertilization system
Metering system
Industrial equipment

Centrifugal Water Pump Technical data:


ModelOutputAR.P.M.Q.MaxH.MaxS.HeadPipe DiaLxWxHN.W.
HP / KW1~220V(l/min)(m)(M)(mm)(Kg)
1.5DKM-160.75 / 0.55428501801691.5"x1.5"320x180x2109.9
1.5DKM-201 / 0.754.828502402091.5"x1.5"320x180x21012
2DKM-161.5 / 1.16.228504802192"x2"380x235x25023
2DKM-202.0 / 1.59.428505402392"x2"380x235x25025

Structural characteristics:


Main SpecificationStandardOptional
Transmission mediumClean Water, sewage water, and fluids
Pump bodyCast Iron
ImpellerBrass with centrifugal radial flow
Motor housingAluminum
Stator&Rotor1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front coverCast Iron
BearingChinese Best Quality BearingNSK, SKF, or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
Thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction lift9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC

DKM water pump

Attention to Parts:

centrifugal water pump

Application:

DKM irrigation water pump

Technical Data:


DKM water pump

Production line:

centrifugal water pump for sales

Products Video

centrifugal water pump


HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
end suction centrifugal pumpsend suction centrifugal pumps
IDB water pumpJET water pumpCPL water pump

Our service:


1). We are happy that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



Centrifugal Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


FAQ:

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?

1 year.
