| Categories | Fire Resistant Fiberglass Fabric |
|---|---|
| Brand Name: | Suntex |
| Model Number: | GF430C-PU213-2031 |
| Place of Origin: | Jiangsu, China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 300000 Meter/Meters per Month |
| Delivery Time: | 5-20 days |
| Packaging Details: | Fabric rolls packed in cartons loaded on pallets or according to customers' requirements. |
| Yarn type: | C-Glass |
| Weave type: | Satin woven or customized |
| Alkali content: | middle |
| Width: | 1m to 2m or customized |
| Weight: | 470g/sqm |
| Thickness: | 0.43mm |
| Base Material: | 100% fiberglass |
| Good features: | non-stick, heat resistant, fireproof, resistance to water, abrasion |
| Standing temperature: | -70°C to +250°C |
| Color: | grey or customized |
| Coating: | two sides Polyurethane(PU) coating |
| Type: | insulation fireproof non-stick fiberglass cloth |
| Application 1: | Fire blanket, automobile fire blanket, welding blanket |
| Application 2: | fire curtain, smoke screen, welding curtain |
| Company Info. |
| Suntex Composite Industrial Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

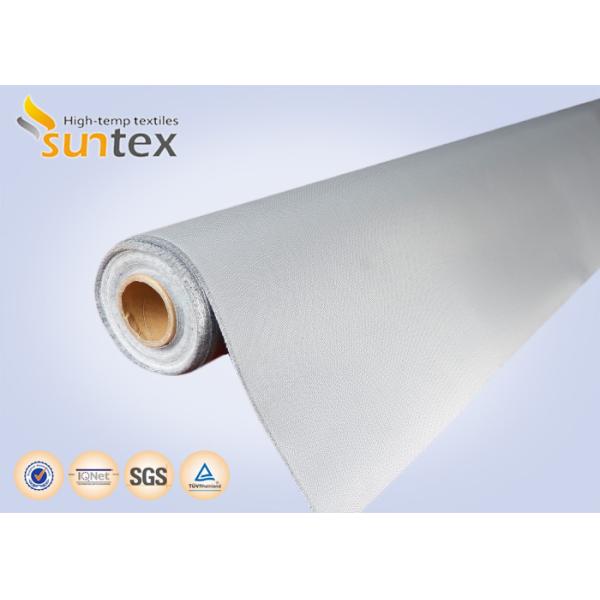

0.4mm High Durability Fireproof Thermal Insulation Soft Polyurethane(PU) Coated Fabric Cloth
Main applications:
fire/welding blanket, fire curtain, smoke screen, fabric ductwork connector, thermal insulation covers, flexible expansion joints, other fire control systems.
| BASE FABRIC | Base fabric style No. GF430C | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | CC9 68 1﹡2 | CCG 75 1/2 | |
| Weft | CC9 68 1﹡2 | CCG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. PU213-2031 | ||
| Coating | Fire retardant, high performance, polyurethane on both sides | ||
| Weight | 470 ± 20 g/m2 | 13.8 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.43± 0.03 mm | 0.017 ± 0.0012 inch | ASTM D1777-96 |
| Color | Silver grey | ||
| Fire resistance | M0 approval | NF 92507 | |
| Temp resistance | Glass fabric up to 5500C (9500F) Polyurethane coating up to 1800C (3560F) | ||



|
