| Categories | Fiber Optic Transceiver |
|---|---|
| Payment Terms: | T/T; L/C; Paypal |
| Brand Name: | Sopto |
| Model Number: | SPT-PCXX1G-XD |
| Certification: | CE / ISO9001 / RoHS |
| Delivery Time: | 3-5 working days |
| Packaging Details: | 10 PCS /Plastic tray, |
| Data rate: | 1.25G |
| Wavelength: | 1270nm~1610nm |
| Fiber type: | SMF |
| Transmission distance: | 40km / 80km / 120km |
| Interface: | Duplex LC |
| Operating temperature: | 0 to 70℃ |
| Application: | Gigabit Ethernet / CWDM Networks |

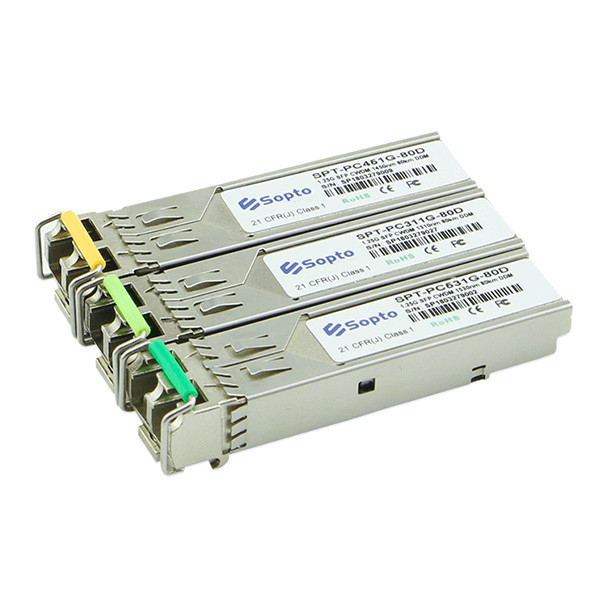

1.25G CWDM SFP Modules LC Interface with DDM Commercial Temperature
SOPTO’s CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications at 1270-1610nm CWDM wavelengths over single-Mode Fiber (SMF). They are designed for use in Fast Ethernet, Gigabit Ethernet, 1G Fibre Channel, and SONET/SDH links, compliant with the SFP MSA. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell, etc.) compatible fiber optic transceivers.
Feature
● Single +3.3V power supply
● Built-in digital diagnostic functions
● Transmission distance up to 120km over SMF
● Supports data rates from 100Mb/s to 1.25Gb/s
● 18 Wavelengths CWDM 1270nm to 1610nm Available
● Can be used with single-fiber CWDM system or dual fiber CWDM system
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C
| P/N | Description |
| SPT-PCXX1G-40D | CWDM 1270nm~1610nm,1.25Gbps, 40km,0ºC ~ +70ºC, With DDM |
| SPT-PCXX1G-80D | CWDM 1270nm~1610nm, 1.25Gbps, 80km,0ºC ~ +70ºC, With DDM |
| SPT-PCXX1G-120D | CWDM 1270nm~1610nm, 1.25Gbps, 120km,0ºC ~ +70ºC, With DDM |
Compliant
● RoHS-6
● SFP MSA
● FC-PI 13.0
● IEEE Std 802.3
Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHS
Application
● Fast Ethernet
● Gigabit Ethernet
● 1X Fibre Channel
● SONET/SDH OC-3/STM-1
● SONET/SDH OC-12/STM-4
● SONET/SDH OC-24/STM-8
● CWDM Networks
Order Information
| PN | Data Rate (Gbps) | Distance | Fiber | output power(dBm) | Sensitivity(dBm) | Interface | Temp. | DDM |
| SPT-PCXX1G-40D | 1.25 | 40km | SM | -5～0 | -24 | Duplex LC | 0 to 70℃ | D |
| SPT-PCXX1G-80D | 1.25 | 80km | SM | 0～5 | -24 | Duplex LC | 0 to 70℃ | D |
| SPT-PCXX1G-120D | 1.25 | 120km | SM | 0～5 | -32 | Duplex LC | 0 to 70℃ | D |
|
