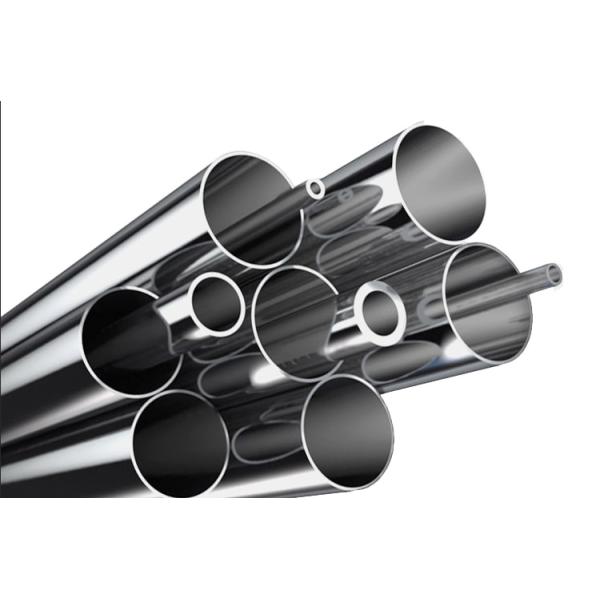

ASTM B163 / ASME SB-163 Hastelloy B3 Pipe UNS N10675 OD 1/2" - 48" SCH 5 - SCH

ASTM B163 / ASME SB-163 Hastelloy B3 Pipe UNS N10675 OD 1/2" - 48" SCH 5 - SCH

1.Hastelloy B3 description

Hastelloy B-3 is a nickel-molybdenum alloy with excellent resistance to pitting, corrosion,

and stress-corrosion cracking plus, thermal stability superior to that of alloy B-2. In addition,

this nickel steel alloy has great resistance to knife-line and heat–affected zone attack. Alloy B-3

also withstands sulfuric, acetic, formic and phosphoric acids, and other non-oxidizing media.

Furthermore, this nickel alloy has excellent resistance to hydrochloric acid at all concentrations

and temperatures. Hastelloy B-3’s distinguishing feature is its ability to maintain excellent

ductility during transient exposures to intermediate temperatures. Such exposures are routinely

experienced during heat treatments associated with fabrication.

Chemical Composition, %

2.What is ASTM B163/ASME SB-163

This specification covers seamless tubes of nickel and nickel alloy for use in condenser and heat-

exchanger service. This covers outside diameter and average wall, or outside diameter and minimum wall

tube. Tube shall be furnished in the alloys and conditions defined by this specification. The material shall

conform to the composition limits of nickel, copper, molybdenum, iron, manganese, carbon, silicon,

chromium, aluminium, titanium, phosphorus, cerium, zirconium, yttrium, born, cobalt, columblum, tungsten,

and nitrogen specified. Tensile strength, yield strength, elongation, and Rockwell hardness of the material

shall conform to the required mechanical properties set by this specification. Test methods such as

chemical analysis, tension, rounding procedure, Rockwell hardness, grain size and hardness conversion

shall be performed.

3.UNS N10675 Hastelloy B3 Pipe SPECIFICATION

Dimensions: ASTM, ASME and API

Standard: ASTM B163/ASME SB-163

Size: 15 NB to 150 NB IN

Outer diameter: 1/2" - 48".

Specialized in: Large Diameter Size

Grade: UNS N10675 Hastelloy B3

Schedule: SCH 5 - SCH XXS

Form: Round, Square, Rectangular, Hydraulic Etc

Type : Welded / ERW / Fabricated

Length : Single Random, Double Random & Cut Length.

End: Plain End, Beveled End, Threaded

4.UNS N10675 Hastelloy B3 Pipe Application

5.Documentation

• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
• Form A for the purposes of the Generalized System of Preferences (GSP)

Product Attribute

Supply Ability:2000ton / per Month

Packaging & Delivery

Packaging Details:Generally ply wooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Main Features

1) Packed and labeled according to the regulations and customer's requests.
2) 15days in common, time can be less if common grade 201, 304/L, 316/L, 409L, 410, 420, 439.

3) Our factory is in Jiangsu province, and cargo are always loaded in Shanghai port, so EXW, FOB Sh

anghai or CIF can be as your request.

Packing Details

Export standard package,bundled or be required.

The inner size of container is below:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)

Octal supply below ranges for the stainless steel pipe and tube:
Standards:GB,AISI,ASTM,DIN,EN,SUS,UNS etc

Duplex stainless steel pipe standards: ASTM A789/ ASME SA 789. ASTM A790/ ASME SA 790
Material: Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm

Product Description:

BoYue Industrial (Shanghai)Co., Ltd. is a professional, young and dynamic enterprise. Adhering to the concept of “survival by quality, development by innovation, cooperation by service”, we provide customers with reliable quality, reasonable price and stable delivery time.

Our main products include steel plate series, pipe series, pipe fittings series, flange series and other related products.

We have a complete sales team, technical team, after-sales service team and large and reliable supply factory, all kinds of certificates. Make sure you get the most reliable products, the most professional technical support and attentive service.

We welcome friends from all over the world to visit our company.

In order to comply with the global modernization services development trends and eliminating the varieties distress of the global enterprise‘s purchase in the consumables, which especially BoYue in products. We coordinate the pressure pipe manufacturer which with the scale of production, quality control and high cost performance (has passed ISO 9001 quality series attestation, ccs, DNV,PED/97/23/EC,AD2000-WO, special equipment manufacturing license,ASME-SA182,) through a variety of effective assort mechanism to make up the shortage of supply and Post-processing of VAT enterprise, and to supply high quality pipe fittings, because of the superior quality and good service, we have established long term business cooperation with more than 30 countries and areas,which covers Europe, Africa, South America, North America, Middle East, Taiwan and South East Asia and so on.

With many years effort and support from our valuable customers, these products have obtained a big market share in the world. Our business principle is "Superior quality, Competitive price, Timely delivery and Considerate service " Standing to the principle of “Enterprises focus on the core business”, we will actively promotes the globalization of business strategy approach, using advanced supply chain management technology to service for clients with higher quality and more competitiveness ‘ s products. At the same time, we sincerely reply your inquiry, honesty waiting for your visiting and wish to have cooperation with you at the any time. We welcome all the customers to contact us for more information. We assure you, with our technical knowledge and experience, our company will be one of your Stable, Continuate business partner in China!

Our main products as follows:

Stainless steel pipe & tube

(seamless pipe / welded pipe / square pipe / rectangular tube,duplex stainless / inconel tube)

Carbon / alloy steel pipe & tube

(seamless pipe / ERW / SSAW / LSAW / UOE / hollow section pipe / Galvanized Pipe)

Tubing and casting

(line pipe,water pipeline,gas pipeline,oil pipeline)

Special steel tube

(copper tube/titanium tube/aluminium tube/nickel alloy )

Flange

(DIN flange/ AISI flange/blind flange/welding flange/stainless flange/slip on flange)

steel sheet / coil

(stainless steel/carbon steel/alloy steel/galvanized steel/aluminium )

Valve

(ball valve/gate valve/butterfly valve/globe valve/swing check valve/ check valve)
