| Categories | Stage LED Screens |
|---|---|
| Brand Name: | SCXK |
| Model Number: | SMD P3.91 |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Place of Origin: | CHINA |
| MOQ: | 12sqm |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Lamp size: | 2121 |
| Pixel configuration: | RGB 3 in 1 |
| Pixel density/pixels/m²: | 64510/m² |
| Module size/mm: | 250x250 |
| Scanning mode: | 1/8 |
| Frame rate: | 60Hz |
| Refresh frequency: | >4200Hz |
| Warranty:: | 3 YEARS |
| Power Supply:: | 110V~240V AC |
| Viewing Distance:: | 3~100m |
| Refresh Rate:: | 3840 Hz |
| Brightness: | >6500 cd/sqm |
| Company Info. |
| Shenzhen ShiXin Display Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
P3.91 P4.81 indoor rental led video display for stage backdrop
Product Features
1, Outdoor high resolution and high brightness, smallest pixel in
the world 3.91mm, unequalled image quality in outdoor environment.
2, Ingress protection being IP65, weather proof and dust proof.
3, High brightness uniformity and color uniformity(≥95%)
4, Super thin and light with die-casting aluminum cabinet design.
5, Good anti-UV and anti-oxidation performance.
6, Large viewing distance, 140° in horizontal, 140° in vertical.
7, Excellent flatness and no splicing gap between modules
8, Quick installation and removal with facile connection lock
Product specification
| SMD P3.91 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3.91 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 64510/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 250x250 | |||||||||||||
| View distance | ≥2m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/8 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss | |||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) | |||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) | |||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
Product Overviews
| Items | Indoor Led display: P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
| Payment terms | 30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) | |
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

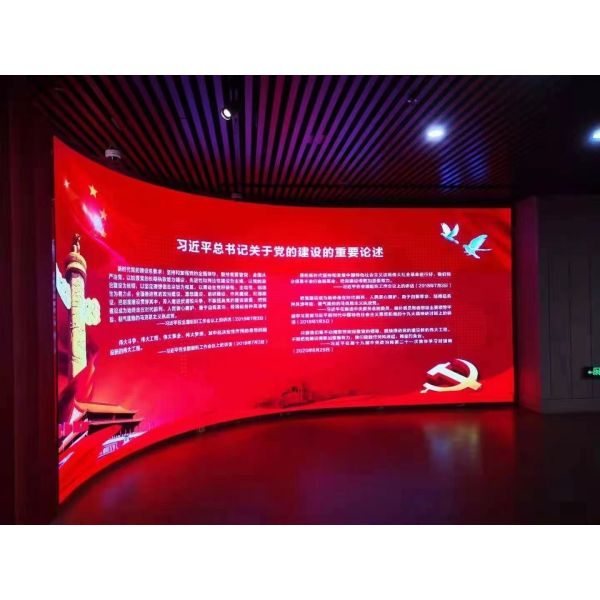

Our case
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and
sharp images and video.
3. High refresh rate and high gray scale --- to ensure color
consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Why choose us
Continues Quality
With more than 10 years experience in led display,equipments are
updated regularly.What’s more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built effective modular production.We always stick to promote the
technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the
products.
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the
standard new factory, about 100 employees. We have outstanding
R&D department and after-sell service workers, and separately
design ability. Our product mainly included led indoor full color
display, led outdoor full color display,led indoor full color
display, led wireless car usd screen, poster screen,transparent
screen etc.It can be used on the shopping mall, bank, bus station,
train station, center of downtown, airport,school,factory,bus,taxi
and so on. We adapt many methods and very good after-sell service
to sell our product all over the world. Whenever and wherever we
are, we always take the principle that is: professional makes good
quality, good price product market to price product market to
provide perfect product and service for our customers.
FAQ
1. Is the product customizable?
|
