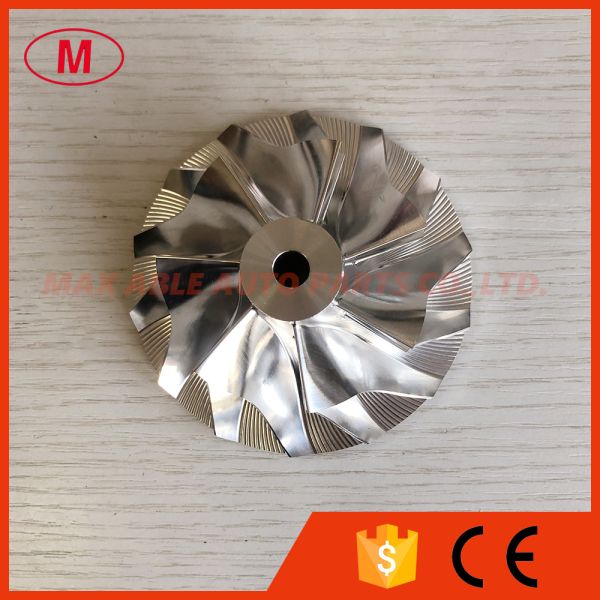

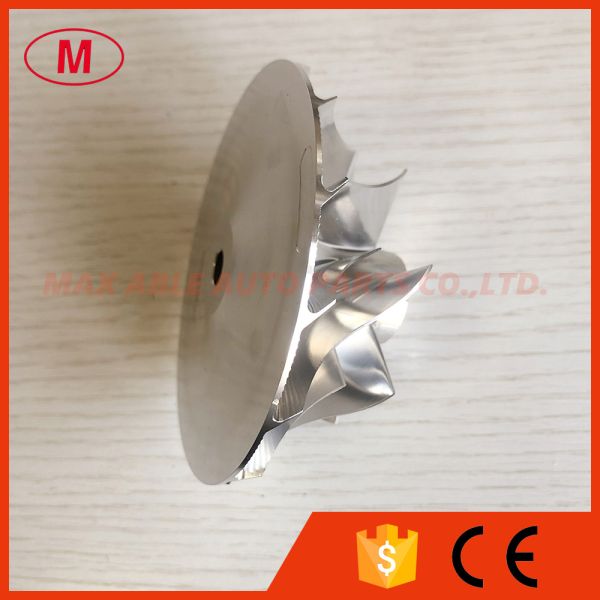

TD08H forward 49188-45120 63.30/92.00mm 7+7blades turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:TD08H forward

2.TD08H forward 49188-45120 63.30/92.00mm 7+7blades turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:22.57mm

Inducer:63.30mm

Exducer:92.00mm

Tip height:5.95mm

Superback:2.95mm

Overall height:42.20mm

bore size :7.95mm

Trailing Angle:45

Cutback:1.0

SP height angle:0.00

Blade height :32.36mm

Splitter height:20.20mm

7+7 BLADES.

Tapered tip angle: 0 degree

It is for OE compressor housing

forward rotation

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
