| Categories | Tractor Head Trucks |
|---|---|
| Brand Name: | Sinotruk |
| Model Number: | Optional |
| Certification: | CE, ISO, CCC, BV, DOT, SGS |
| Place of Origin: | Shandong, China |
| MOQ: | 1 unit |
| Payment Terms: | L/C, T/T or negotiable |
| Supply Ability: | 200 units per month |
| Delivery Time: | 25-35 days after 30% deposit |
| Packaging Details: | Paint and wax spraying |
| Meterial: | Steel |
| Color: | Red, white, yellow, green optional |
| Horse power: | 420HP |
| Emission standard: | EURO II |
| Capacity: | 18 cbm |
| Fuel Type: | Diesel |
| Drive Type: | LHD/RHD |
| Price: | negotiation |
Specifications

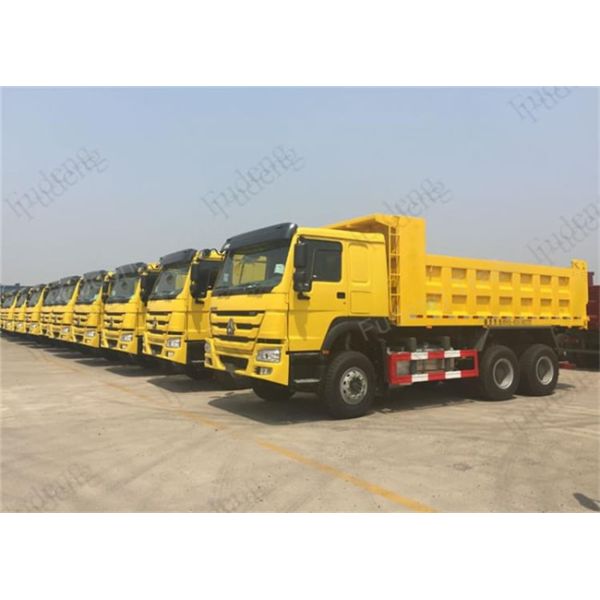

(1) 6*4 dump truck
(2) 3 Axle
(3) Euro II emission.
(4) Horse Power 420 HP
(5) Displacement: 9.726L
(6) Dump Box Volume: 18 cbm
(7) Certification: ISO9001 CCC,SGS
Technical Parameters
| Drive type | 6x4 |
| Overall Dimensions(mm) | 6985x2496x3850 |
| Transmission | SINOTRUK HW19710 |
| Wheelbase(mm) | 3225+1350 |
| Rear tread (mm) | 1830 |
| Overall weight (kg) | 11290 |
| Max. Speed (km/h) | 101 |
| Type | D12,42, 420hp, Euro2 |
| Displacement (cc) | 11596 INSIDE CAB PIC |
| Max. Output power(hp/rpm) | 420hp |
| Clutch | Spring plate dry diaphragm spring diameter |
| Driving axle | HC16, 16tons strengthen axle double reduction driving axle |
| Front axle | HF9, 9tons plate (disc) brake |
| Steering | ZF power steering model ZF8098 hydraulically steering with power assistance |
| Brake | Serive brake: dual circuit compressed air brake |
| Parking brake: spring energy compressed air operating on rear wheels | |
| Tyre | 12.00R20 Radial tire |
| Cabin | HOWO A7-P, cab 2 persons with Single bed A/C, LED,VDO,MP5 |
| Color | Customer's Request |
|
