Industrial Horizontal Lemon Juice Processing Decanter Centrifuges / Separation Equipment
Product Description

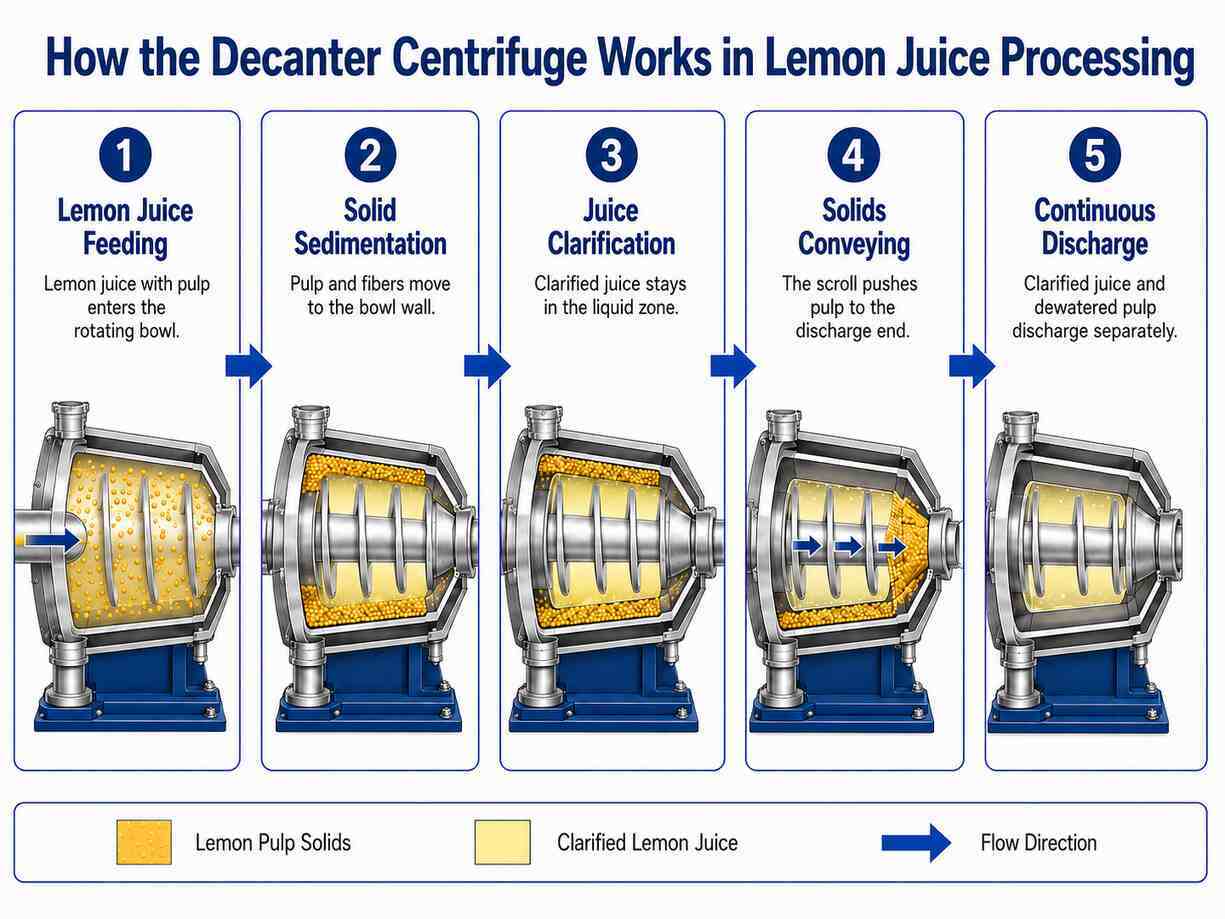

Decanter centrifuge is a horizontal, continuously working and
continuously spiral discharging sedimentation centrifuge.Decanters
with slow rotation speeds are normally based on horizontal
separation technology. Decanter eusure optimum separation
efficiency in the case of suspensions with a very high proportion
of solid. They are also used for the extraction constituents from
liquids and for concentrating, dewatering and classfying solids.
Application
Polyoxyethylene resin | Sulphate | Diatomite | Starch |
Soy Protein | Peanut protein | Fruit juice | Ammonium acid |
Barium carbonate | Barium sulfate | Lit powder | Titanium dioxide |
Ore | China clay | Vegetable oil | Citric acid |
Waste oil purification | Washing water purification | Distiller's grains | Animal fat |
Blood meal | Power plant sludge | Printing and dyeing sludge | Paper sludge |
Weather desulfurization sludge | Cryolite flotation liquid | Activated sludge | Ammonia sludge |
Car wash sludge | Sludge drilling mud | Coal flotation waste | Etc. |
OUR SERVICE
Model | Diameter (mm) | Speed (rpm) | G-force | Capacity (m3/h) | Main motor Power (kw) | Assistant motor power (kw) | Weight (kg) | Overall Size (L × W × H) (mm) |
PNX-409 | 250 | 5500 | 3493 | 0.2-2 | 15 | 4 | 1020 | 2500 x 650 x 760 |
PNX-414 | 355 | 4000 | 3175 | 1~10 | 18.5 | 7.5 | 2035 | 2765 × 920 × 1060 |
PNX-416 | 355 | 4000 | 3175 | 1~15 | 18.5 | 7.5 | 2122 | 3065 × 920 × 1060 |
PNX-418 | 355 | 4000 | 3175 | 1~25 | 22 | 7.5 | 2222 | 3365 × 920 × 1060 |
PDC-17-4 | 420 | 3600 | 3042 | 3~15 | 30 | 7.5 | 2230 | 3331 × 990 × 1066 |
PDC-18-4.4 | 450 | 3300 | 2739 | 10~20 | 37 | 11 | 2739 | 4000 × 1120 × 1239 |
PDC-20 | 500 | 3200 | 2860 | 5~45 | 55 | 11 | 4400 | 4489 × 1160 × 1350 |
PDC-21 | 540 | 2800 | 2366 | 15~50 | 45 | 15 | 5290 | 4587 × 1285 × 1368 |
PDC-24 | 620 | 3200 | 3555 | 15-60 | Hydraulic | 90 | 8000 | 4650 x 2010 x 1200 |
PDC-28HH | 720 | 2200 | 1975 | 15-80 | 110 | 37 | 9393 | 4800 X 1350 X 1500 |
FAQ
1. How can we visit your factory?
- If you come from aborad, air to shanghai or nanjing airport, or
if you arrive shanghai, you can take bullet trian
- If you come from domestic city, air or train directly to Nanjing
Nan or WUXI east, we will pick you up both from airport or railway
station
2. Can we visit your end user or contact them?
- Yes, we will provide you the name list, and arrange the visit
after their approval.
3. How do you protect the quality?
- As state owned enterprise with more than 100years history, we
have strict operation policy,advanced processing machines to
guarantee the precision, workers with operation license, related
components are from world famous brand, Series of test and
inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and
commissioning?
- Yes, we will upon required.
5. What is your advantage compared with your competitors?
- Quality and experience, we are top centrifuge supplier in
China,our designs and structure
are analogous to world leader brands.
6. Is your price competitive?
- My price is not the lowest in China, but we promise, for the same
quality and collocation, my price is the
most favorable, for the same price, my quality is definately
superior to other brands
7. Do you have OEM service? Do you sppply the parts?
- Yes, we do, as long as you provide us your drawing and detailed
requirements
8. Do you supply second hand equipments?
- No, we don't.
9. Do you have agents or service centre abroad?
- We have some partership in several countries as Indonesia, Brzil,
USA.
10. What payment mode you accept?
- TT, and LC at sight
11. Will you help to go to our site for commissioning and training?
- Yes, we can.
