| Categories | Fire Truck Parts |
|---|---|
| Brand Name: | J&M |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 30 Days |
| Horsepower: | < 150hp |
| Tank Capacity: | < 3000L |
| Fire distance: | Water ≥48meter |
| Engine model: | 4KH1CN5HS |
| Diversion time: | ≤60s |
| Tire: | Steel tire |

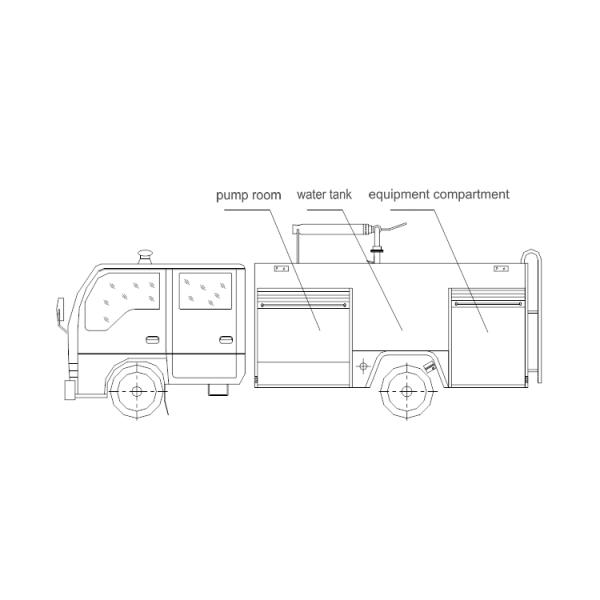

ISUZU 2000L Fire Truck Parts Water Tank Fire Truck Horsepower < 150hp
Product Description:
| Base specification | |
| Item | Technical parameters |
| dimension | 6540×1910×2900mm |
| Gross weight | 6810kg |
| water tank capacity | Water :2000kg. |
| Engine power rating | 96kW |
| Max speed | 100km/h |
| Emission standard | EURO 4 |
| Pump rating | 30L/s1.0MPa; |
| Flow | 20L/s, |
| Fire distance | Water ≥48meter |
| The number of crew | Double row cab 6 people |
| Specific power | 96/6.8=14.1 |
| approach angle | ≥23° |
| departure angle | ≥18° |
| chassis: | |
| Type: Engine(motor) | QL1070A5KWY |
| manufacturer | Qingling Automobile Co., LTD |
| Engine model | 4KH1CN5HS |
| engine power rating | 96kw |
| wheelbase | 3815mm |
| gross weight | 6810kg |
| max speed | 100km/h |
| Tire | Steel tire |
| Cabin | |
| Structure | |
| Equipment | Fire control instrument panel and police light control box are installed at the instrument panel of the original vehicle 1. Alarm; 2. Power take-off switch; 3. Additional power switch; 4. Compartment lighting, rear lighting, strobe light switch, rolling door lighting, etc. |
| PTO | |
| Type | Sandwich Full Power PTO |
| Output form | Flange output, same steering as engine |
| Material | Carbon steel,thickness: 4mm |
| Capacity | water:2000kg; |
| FIRE PUMP | |
| Mode | CB10/30 |
| Type flow pressure maximum suction depth | Atmospheric centrifugal pump 30L / s 1.0MPa 7m |
| Water diversion device | Built-in water ring pump |
| Diversion time | ≤60s |
|
