| Categories | MTP MPO Fiber Cable |
|---|---|
| Keyword: | MTP MPO Fiber Cable |
| Usage: | Telecommunication networks |
| Connector type: | MPO,LC,MTP,ST,FC |
| Cable Color: | Orange, Yellow, Aqua, Purple, Violet Or Customized |
| Cable Length: | 1M, 2M, 3M Or Customized |
| Fiber core: | Custom |
| Certification: | ISO 9001 |
| MOQ: | 10 Pieces |
| Price: | Negotiable |
| Packaging Details: | Cartoon |
| Delivery Time: | 7-10 Days |
| Payment Terms: | 30% deposit , Balance due within 7 days from date of shipment bill of lading |
| Supply Ability: | 50000 Monthly Output |
Description:

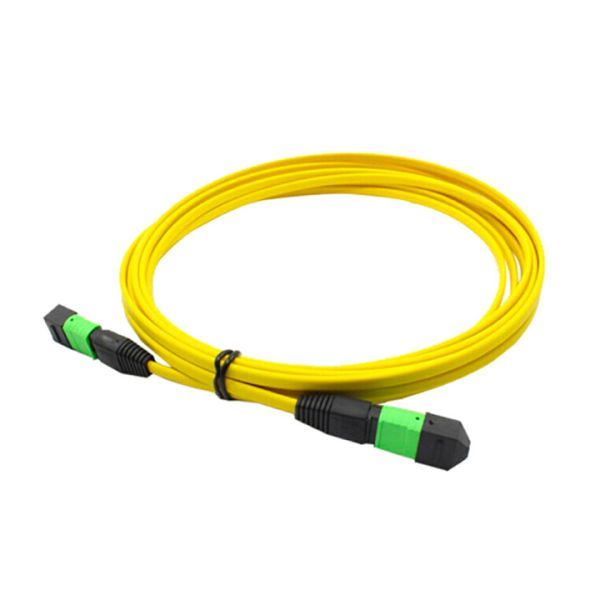

MPO fiber optic patch cords are with MPO fiber optic connectors.
They are several fiberglass connections in one such patch cord, for
example, 4 fiber, 8 fiber, 12 fiber, etc.
Single mode and multimode; UPC, APC polishing, Male and Female
types are available.
Feature:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability.
Application:
CATV, and Multimdeida
Active dvice termination
Telecommunication networks
Gigabit Ethernet
Interconnection for O/E modules
Data Processing networks
Industrial and Medical
Premise installations.
Optical switch interframe connection
Asynchronous Transmission Mode(ATM)
| Type | Single mode (APC polish) | Single mode (PC polish) | Multi mode (PC polish) | |||
| Fiber count | 4,8,12, 24 etc. | 4,8,12, 24 etc. | 4,8,12, 24 etc. | |||
| Fiber type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite Low Loss | Standard | Elite Low Loss | Standard | Elite Low Loss | Standard |
| ≤0.35 dB | ≤0.70 dB | ≤0.35 dB | ≤0.70 dB | ≤0.35dB | ≤0.50dB | |
| Return Loss | ≥55 dB | ≥45 dB | ≥20 dB | |||
| Durability | ≥200 times | ≥200 times | ≥200 times | |||
| Operating Temperature | -40°C ~ +80°C | -40°C~ +80°C | -40°C ~ +80°C | |||
| Test Wavelength | 1310nm | 1310nm | 850nm | |||
|
