| Categories | Fuel Delivery Tank Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW5089 |
| Certification: | CCC, BV, SGS |
| Place of Origin: | SUIZHOU, CHINA |
| MOQ: | 1 Unit |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Unit/Month |
| Delivery Time: | 30-35 days |
| Packaging Details: | Naked,Waxed,Bulk Ship,Ro-Ro |
| Tank Size: | 5CBM 10CBM 12CBM 15CBM 20CBM, As per customer requirements. |
| Tank Capacity: | 4tons 8tons 10tons 12tons 16tons, etc. |
| Tank Material: | Q235 Carbon Steel/Stainless Steel/Aluminium Alloy |
| Tank Shape: | Square Round/Ellipse/Round |
| Color: | Customized |
| Steering: | RHD, According To Different Countries |
| Chassis Brand: | Foton/Forland, Dongfeng, Isuzu, Sinotruk/Howo, FAW, etc. |
| Warranty: | 1 year |
Product Description
1. Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.
3. Advantage: High quality with competitive price.
Product Specification
| General Technical Parameters | |||
| Overall Dimension | 5990×1960×2400(mm) | ||
| Gross Vehicle Weight | 8500(Kg) | ||
| Curb Weight | 3365(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Isuzu | ||
| Drive model | 4*2 | ||
| Cabin | Isuzu, Single, Left-hand Drive, with air condition. | ||
| Number of Passengers | 2 | ||
| Engine | Model | BJ493ZLQ1/108HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, withABS. | |
| Power | 80KW/108HP | ||
| Emission standard | EURO4 | ||
| Displacement | 3707(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 1Reverse, manual operation. With power steering. | ||
| Brake System | Oil break rotation | ||
| Wheel Base | 3360mm | ||
| Front/Rear Axle Loading | 2000/4000(Kg) | ||
| Tire | 7.00R16, 1PC including 1 spare tire | ||
| Max Driving Speed | 90(km/h) | ||
| Upperstructure Specification | ||
| Oil Tank | Effective Volume | 5CBM |
| Transport Oil Type | Fuel | |
| Tank Material | Q235, carbon steel( also can choose stainless steel,aluminum ) | |
| Tank Shape | Square Round | |
| Manhole | 1unit Euro Standard manhole, DN500mm | |
| Refueling System | 1. Oil pump; 2. Oil dispenser machine; 3. Hose reel with filling gun. | |
| Others | Emergency cut-off valve, Lifting fence, electrostatic wire reel, ladder, GPS, etc. | |
| Options | Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe. | |
Reference Photos

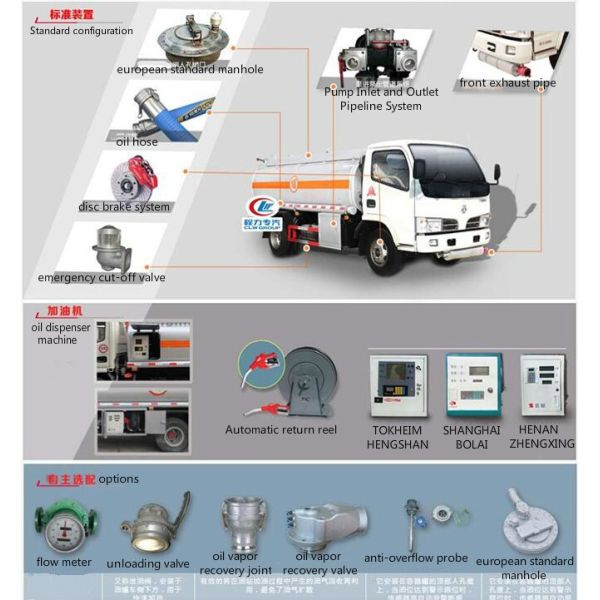

Main Structure and Details

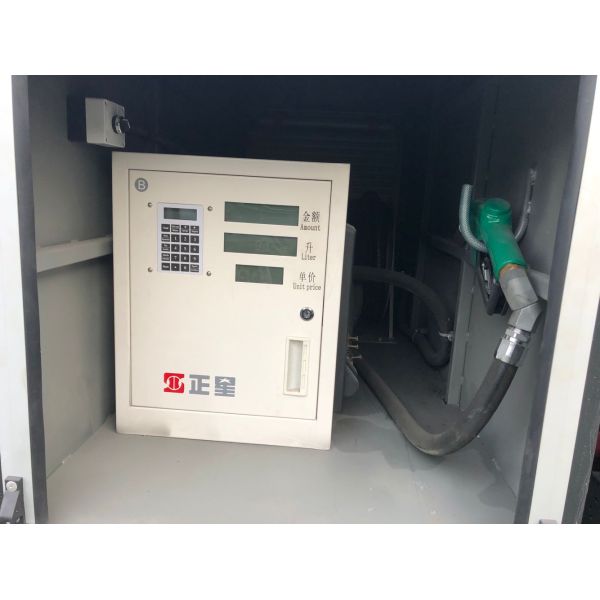

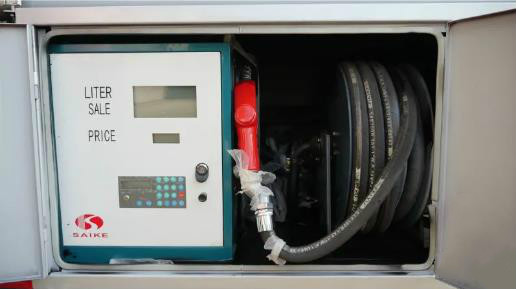

Main Parts
Different Capacities of Fuel Dispenser Truck
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their
needs.
2)Sales Service: Provide professional technical solutions,
recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the
EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of refueling truck I can order from your company?
A: We can supply different size refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Refueling Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for refueling truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. From Shanghai to Wuhan is only
2 hours by airplane. Warmly welcome you to visit us in near future!
|
