| Brand Name: | JUNSON |
| Model Number: | JS-EM25 |
| Certification: | CE/ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30,000pcs per month |
| Delivery Time: | 1-7 working days after received your payment |
| Packaging Details: | Packed in carton |
| Dimension: | Dia 25 * 10mm |
| Holding force: | 6kg |
| Insulation class: | B class |
| Voltage: | 24 VDC |
| Working type: | Wooden door, Metal door of small locker, Auto. Equipment., |
| Materials: | Fine copper coil + Steel round housing |
| Finishes for Magnetic: | Blue Zinc |
| IP Rate: | IP 54 |
| Life Time: | 500,000 times |
| Company Info. |
| Shen Zhen Junson Security Technology Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

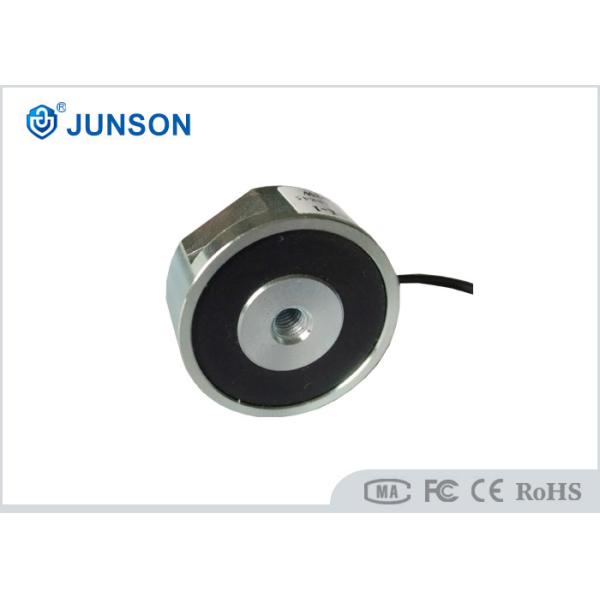

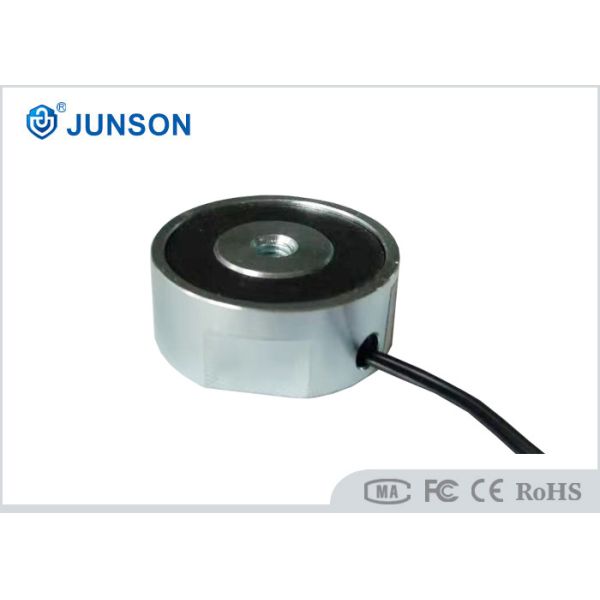

Small Fail Secure type Electromagnetic lock
Model: JS-EM25
Specification:
Voltage: 24VDC
Working type: Fail safe, locked when power on
Materials: Fine copper coil + Steel round housing
Suitable for: Wooden door, Metal door of small locker, Auto. Equipment.,
Surface Temp: ≤ 65K
Operating Temp: -5 ~ +55°C
Suitable Humidity: 5~85%(non-condensing)
Finishes for Magnetic: Blue Zinc
IP Rate: IP54
Insulation class: B class
Life Time: 500,000 times
More size can be customized
Basic specification for Each size:
| Model | Holding force | Consumption | Current | Dimension | DC Resistance |
| JS-EM25 | 6kg | 1W | 40mA | Dia25 * 10mm | 576Ω±10% |
| JS-EM50 | 50KG | 1.8 W | 75mA | Dia50 *25 mm | 320Ω±10% |
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
