Three Compartment Waterproof Telecom Equipment Outdoor Cabinet Galvanized Steel

Three Compartment Waterproof Telecom Equipment Outdoor Cabinet With High Performance Cooling System

1. Cabinet Main Features

• The cabinet is welded by metal material, solid and reliable (covered aluminum plate, cold rolled steel plate, stainless steel optional);
• Surface treatment: degreasing, rust, rust phosphate (or galvanized), spray;
• Double-layer structure and the middle of insulation materials, can effectively prevent the sudden change in the internal working temperature; and effective to prevent the generation of condensation;
• Prominent roof design can effectively protect the cabinet, and can increase the appearance of the cabinet;
• All doors of the cabinet are equipped with limit device, in the outdoor operation to protect the operator;
• Standard 19 "and non-standard equipment placement platform can be installed PDU/EMS/UPS/BATTERYS and other equipment;
• PC folding table unique, easy to operate;
• Cabinet door lock IP65 with the use of outdoor protection level lock, three-point locking structure;
• In the anti-theft performance of the unique design and rigorous testing;
• In addition to all locks installed anti-theft lock cover, plus hanging two protective lock processing;
• Optional access control device, in the illegal open the door when the output alarm signal;
• The cabinet door adopts concealed hinge;
• The outer surface of the cabinet has no exposed fasteners;
• Install the anchor bolts in the cabinet.
• Have enough line space, alignment layout reasonable;
• The surface coating of the cabinet adopts outdoor plastic powder with excellent weather resistance;
• Installation methods are: hanging (hanging wall, overhead), landing (against the wall, independent), and so on;
• The protection degree of the cabinet can reach IP55;
• Grounding system is safe and reliable;
• Strict product sealing the overall test;
• Stainless steel box outdoor wet condensing field test.

2. Cabinet Description

The cabinet, made of galvanized steel, is divided into equipment compartments and battery compartments. The cabinet is easy for installation, and with good sealing performance.

2.1 Cabinet Material

The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

2.2 Cabinet Structure

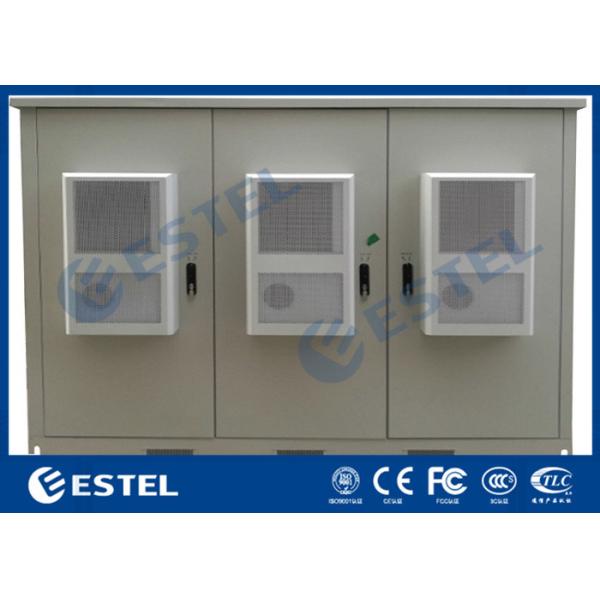

The cabinet includes 19” equipment installation rack. The cabinet includes four air conditioner and fans, installed on front door.

1. Equipment Compartment: The right part of the cabinet is equipment compartment, which is separated from the battery compartment with devision plate.

2. Battery Compartment: The battery compartment is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet includes exhaust device, which can release harmful gas generated by the batteries.

3. Cabinet Dimension: W×D×H 2500mm×800mmx2000mm

3. Product Features

• The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

• The equipment compartment and battery compartment cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h

• The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.

• All the cables used in the cabinet are made from flame retardant materials.
