| Categories | Transparent LED Display |
|---|---|
| Brand Name: | DDW |
| Model Number: | DDW-OTP1000 |
| Certification: | CE/ROHS/FCC/UL/ISO/3C |
| Place of Origin: | Shenzhen ,China |
| MOQ: | Negotiable |
| Payment Terms: | Bank T/T transfer, Western Union |
| Supply Ability: | 6000sqm/month |
| Delivery Time: | 7-20 days |
| Packaging Details: | Plywood or Flight Case |
| Price: | Negotiable |
| Cabinet Size: | 1000*500mm |
| Brightness: | >5000nits |
| Driving Mode: | 1/2scan |
| Refresh Rate: | >1920hz |
| Working Temperature: | -20℃ - +60℃ |
| Grey Level: | 256levels |

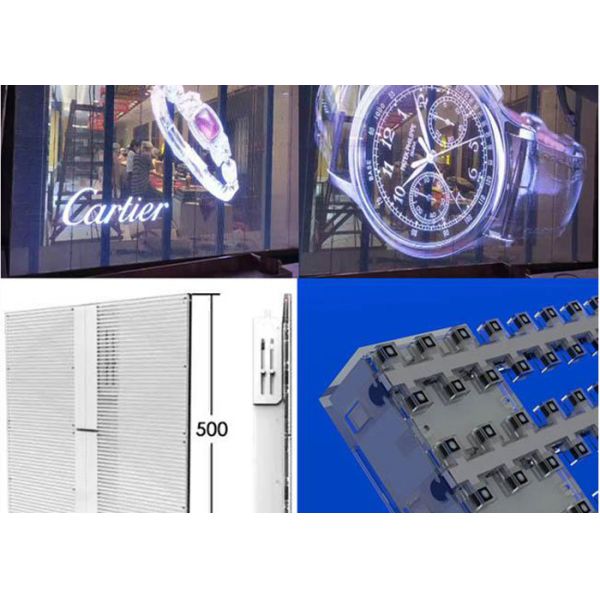

High Brightness Outdoor Transparent LED Display Screen 500mm X
1000mm Cabinet
>> Features
1. P10 pixel pitch and design enable transparency as high as 78%;
2. High quality LED lamp, power supply, and PCB materials to ensure
the lifespan and stable
3. High Brightness to ensure the LED display visibly if it is
behind a glass wall and facing outside;
4. Light weight, available for the different installation
environment, hanging, standing
| Item | argument |
| Pixel Pitch | 10mm |
| Pixel Density | 9,216dos/sqm |
| LED Package | SMD3528 |
| Cabinet Size | 1000*500mm |
| cabinet Resolution | 96*96dot |
| Cabinet Materials | Aluminum |
| Cabinet Wegiht | 9kg/pc |
| Brightness | >5000nits |
| Driving Mode | 1/2scan |
| Refresh Rate | >1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/140° |
| Viewing Distance | 10-300m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 300W/sqm |
| Ave. Power Consumptio | 140W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
>> Description
1. Usage: Indoor, hotel, shopping mall, 4s auto shop Glass,
2. Installation: Wall-mounted, standing on the floor.
3. Control: Controlled by your computer, own equipment.; or adopt wireless controller
4. Connection: Connected to your computer or own equipment.
5. Maintenance: Enough Free spare parts for replacement,

|
