| Categories | Micro Coax Cable Assemblies |
|---|---|
| Place of Origin: | China |
| Brand Name: | Cablelinker |
| Model Number: | CF-137 |
| Supply Ability: | 5000 Piece / Pieces per Week |
| Packaging Details: | Standard Package carton box with polybag inside waterproof. |
| MOQ: | 10 Piece/Pieces |
| Price: | Negotiable |
| Application: | LCD |

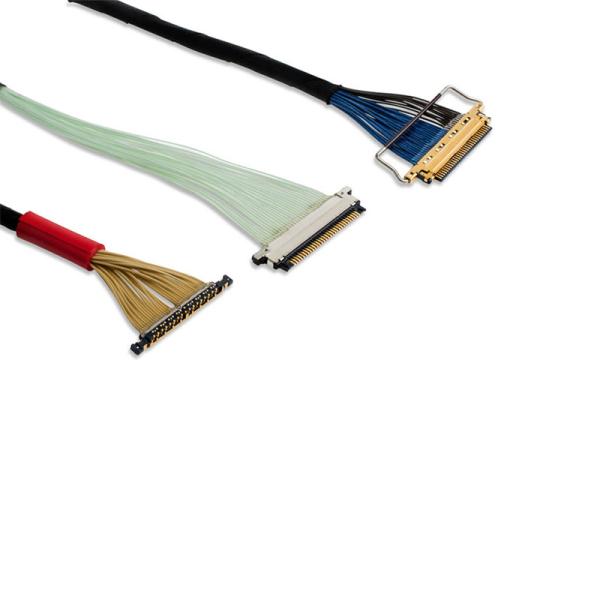

| Product name: | Ipex 20454 20410 micro coaxial lvds cable |
| Connector: | Ipex |
| Length: | Customizable |
| MOQ: | 10pcs |
| Pitch: | 0.4/0.5/0.8/1.0/1.25/1.27/2.0mm/2.54mm |
| Terminal: | Silver |
| Express: | DHL FEDEX UPS TNT |
| Service: | OEM ODM Accept |
| Lead time: | 15-20 Days |
| Color: | As requested |
| Port: | Shenzhen |
| Delivery Time: | 10-20 Days |
| Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
IPEX I-PEX CABLINE-CA-20525-030E-02 20525-040E 20525-260E-02 Micro Coaxial LVDS Cable For CCD Cameras
Product name:Dai-ichi Seiko I-PEX CABLINE-CA-20525-030E-02
20525-040E 20525-260E-02
Item:I-PEX 20525-030E-02
Price:I-PEX 20525-040E-02 20525-030E-02 20525-260E-02
Details:
I-PEX cabline CA connector cable
Dai-ichi Seiko I-PEX CABLINE-CA connectors
DisplayPort(2.7Gbps to 5.4Gbps) with optimized design of contact
and march internal GND points.
0.4mm Pitch Horizontal type Micro Coax connector.
Mating Height : 1.1mm.
“W-Point” contact with High mating reliability.
Anti-reverse mating design.
Locking bar prevents accidental unmating (Option).
| Pitch | 0.4 |
| Pin Counts | 12, 20, 30, 40, 50, 60 |
| Mating Parts | Cable | Cable | Cable | PCB | Cable |
| Plug | Plug | Plug | Rece | Plug for Cable assembly | |
| Housing | Shell A | Pull Bar | |||
| Prefix Number | 20634 | 2764 | 2766 | 20525 | 20633 |
| Parts Number | 20634-1**T-02 | 2764-0***-*** | 2766-0**1 | 20525-***E-** | 20633-2**T-01S |
| Recommended P/N | 20634-112T-02 20634-120T-02 20634-130T-02 20634-140T-02 20634-150T-02 20634-160T-02 | 2764-0121-002 2764-0201-002 2764-0301-002 2764-0401-002 2764-0501 2764-0601-002 | 2766-0121 2766-0201 2766-0301 2766-0401 2766-0501 2766-0601 | 20525-012E-02 20525-020E-02 20525-030E-02 20525-040E-02 20525-050E-02 20525-060E-02 | 20633-212T-01S 20633-220T-01S 20633-230T-01S 20633-240T-01S 20633-250T-01S 20633-260T-01S |
| Note | Set parts number of Housing, Shell A, (Pull Bar) |
I-PEX CABLINE-CA,20525-012E-02, 20525-020E-02, 20525-030E-02, 20525-040E-02, 20525-050E-02, 20525-060E-02, 20633-212T-01S, 20633-220T-01S, 20633-230T-01S, 20633-240T-01S, 20633-250T-01S, 20633-260T-01S, 20634-112T-02, 20634-120T-02, 20634-130T-02, 20634-140T-02, 20634-150T-02, 20634-160T-02, 20680-020T-01, 2764-0121-002, 2764-0201-002, 2764-0301-002, 2764-0401-002, 2764-0501, 2764-0601-002, 2766-0121, 2766-0201, 2766-0301, 2766-0401, 2766-0501, 2766-0601, I-PEX
|
