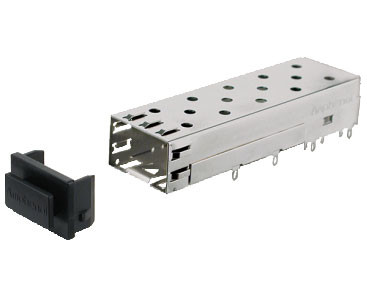

U77-A1114-100T SFP Cage Connector 1X1 PRESS FIT EMI Shielded

The U77-A1114-100T SFP Cage Connector is designed for high-speed data transmission applications, supporting up to 6Gb/s per channel. This versatile cage is compatible with multiple transceivers, offering a compact and cost-effective solution. It is designed to maximize PCB space utilization and is available in Press-Fit and solder-tail versions.

U77-A1114-100T Dimension:

Target Markets of 1X1 SFP Cage Connector

1. Cellular Infrastructure
2. Network Interfaces
3. Hubs
4. Servers
5. Storage Solutions
6. Test and Measurement Equipment

U77-A1114-100T Materials (RoHS Compliant)

• Cage: Made from copper alloy
• Plating Option 1: 2.54 μm minimum bright tin plating over 1.27 μm minimum nickel underplating (with a solder temperature of up to 230°C)
• Plating Option 2: 2.54 μm minimum matte tin plating over 1.27 μm minimum nickel underplating (with a solder temperature of up to 245°C for 10 seconds peak time)
• Dust Cover: Thermoplastic, black color
• Housing Material: Copper
• Contact Plating: Tin
