ASTM Stainless Steel Plate 1.2083 420 S136 With Thickness 10-195mm

Categories Mold Steel Plate
Brand Name: CF STEEL
Model Number: 1.2083 SUS420J2 420 S136 4Cr13
Certification: ISO/Mill Certificate/SGS
Place of Origin: China
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 3000t/Month
Delivery Time: 7-15 days
Packaging Details: standard export packing or customers' request.
Standard: DIN,ASTM,AISI,GB,JIS
Test: SGS / Ut 100% / Element Testing
Heat Treatment: Annealing +Q+T
Technology: Forged or Hot Rolled
Hardness: Pre-hardened HRC 30-36; Annealing <235
Surface treatment: Black / Milling / Machined
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ASTM Stainless Steel Plate 1.2083 420 S136 With Thickness 10-195mm

Stainless Steel Plate 1.2083 420 S136 with Thickness 10-195mm


1.2083 mould steel is a kind of plastic mould steel with high chromium element which is up to 13%.1.2083mould steel has good wear resistance and good polishing, it widely used for acid proof plastic mold.



1, Grade

DIN 1.2083 AISI 420 JIS SUS420J2

2, Feature
Excellent corrosion resistance;Excellent abrasion resistance and elasticity
Excellent high-temperature abrasion resistance
Medium toughness,dimensionally stable,high compressive strength

3, Application
Highly stressed cutting and punching tools for thin sheets
Stone processing tools and knives for paper and plastics,shear knives
Chemical Resistance plastic mold,Corrosion of thermoplastic plastics


4, Hardness after tempering :

Tempering100°C200°C300°C400°C
HRC54525252


5, Chemical composition (%)

Gradedelivery hardnessºCCSiPSCrNiMoMn
420HRC32-360.40.8≤0.03≤0.0313.5~0.60.5
4Cr13HB≤2010.36-0.48≤0.6≤0.035≤0.0312-14≤0.6~≤0.8
1.2083HB≤2350.26-0.35≤0.6≤0.03≤0.0312.5-14≤0.5~≤0.8
S136HB≤2350.380.8≤0.03≤0.0313.6~~0.5


6, Package: We provide standard export packing or according to customers' request.


7, Delivery: For abundant stock, 7-15 days.For customized products, 15-30 days.


8, Heat Treatment:

Annealing :810 - 830 °C
Hardness after annealing :Max.230 HB
Stress relieving:Approx.650 °C
Hot forming:1050 - 850 °C
Hardening:970 - 990 °C
Quenching media:Oil, Vacuum
Hardness after quenching:52 - 56 HRC

9. Avaialbe Size

Steel plateThicknessWidthLength
10-195mm205-2000mm1600-6000mm

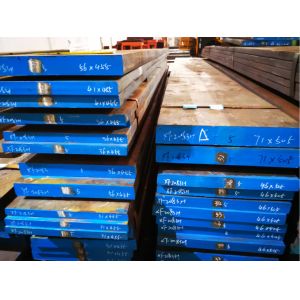

Product Photo


Strict Quality Control

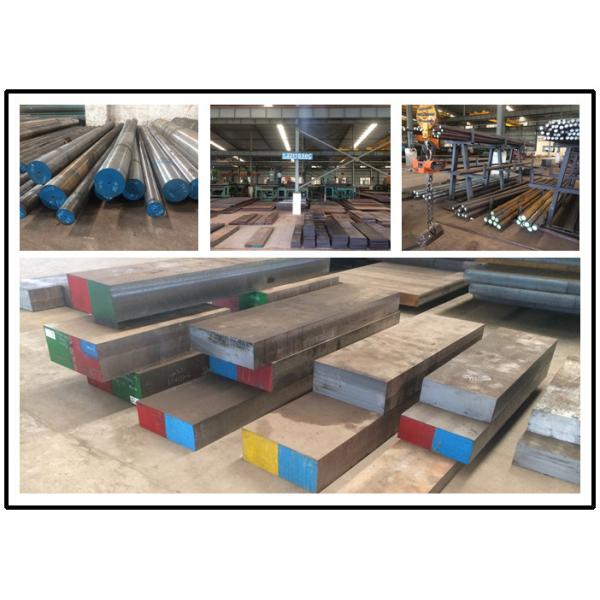

Loading Photo


Company Profile
Guangzhou Changfeng Steel Co.,LTD is an export agent company of Baosteel Group special steel products, which mainly sells plastic die steel, hot work die steel, cold work die steel, alloy structural steel, bearing steel, tool steel, stainless teel, carbon steel, etc. We also act on behalf of exporting steels of mainly steel factories in China, including Shagang group, Wenfeng group, Xingcheng group, Dongte group, Daye and so on. Changfeng is full of export experience to the market all over the world, such as America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
Changfeng has a lot of experienced and competent elites and is capable of offering the best service after years of development. Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services. Our all products should be inspected the metallographic analysis,hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI,JIS and GB to ensure their function and quality.
Changfeng keeps the principle of " sincerely cooperation, endless striving for perfection" to establish long-term and win-win relationship with importers all over the world.
