| Categories | Coil Heaters |
|---|---|
| Brand Name: | GME |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 50pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Delivery Time: | 7~10 working days |
| Packaging Details: | cartons， pallet |
| Power Source: | Electric |
| Dimension: | Customized |
| Voltage: | 120v 220v 240v 380v, 220V |
| Sheath material: | Stainless Steel or Nickel |
| Cross Section: | 3.0x3.0,3.3x3.3mm,4.50 * 4.50 mm |
| Style: | straight or coil |
| Lead wire: | , fiberglass , metal mesh |
| Coiling Scheme: | Tangential, radial exits, axial |
| Material: | Brass and stainless steel |
| Application: | manifolds, hot runner/ injection |
| Surface finishing: | bright or soft annealed |
| Insulation Resistance: | > 5 MΩ |
| Company Info. |
| Wuhan Global Metal Engineering Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

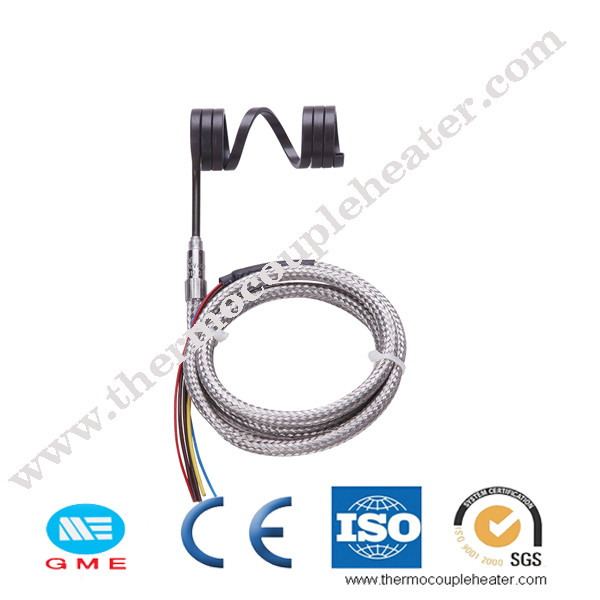

Hot runner electric heating element coiled heaters with
thermocouple
Description:
1. Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer.
2. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
Specification:
1.Standard sizes available with various cross section
2.Various Watt Density option available
3.Designed for even heat profile
4.Precision fit on Hot Runner Nozzles
5.Highly Non-corrosive
| Product Name | Hot Runner Coil and Cable Heaters with thermocouple K/J |
| Section area | 2.3*4.3,2.7*4.5,3.0*3.0,3.5*3.5,2.2*4.2,2.7*4.5,3.5*3.5 |
| Sheath Material | Stainless Steel |
| Insulation Material | High Pure MgO |
| Heating Coil ID | 10mm-38mm |
| Voltage | 110-240V / 50-60Hz |
| Wattage | 70w-3000w |
| Build-in thermocouple | With Thermocouple J/K |
| Available sheath | nylon,metal braided,fiberglass ,silicone rubber, kevlar |
| Sheath's color | standard is black,other color is also available |
| Resistance Wire | Ni Cr 80-20 |
| Maximum Sheath Temperature | 700°C |
| Length Tolerance (Straight) | 5% |
Application:
1.Caustic Cyanide used in gold processing
2.Caustic solutions Detergent
3.Sterilizing equipment
4.Plastic processing&packaging machinery
5.Ovens&dryers
6.Dies&Tools
7.Water& Oil heating appliances
8.Vending machines
9.Medical equipment information about what you need.
|
