| Categories | Tensile Testing Machine |
|---|---|
| Model Number: | TZ-D100 |
| Certification: | CE Complied |
| Place of Origin: | Guangdong, China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union, , MoneyGram |
| Supply Ability: | 500 sets/ month |
| Delivery Time: | 5-7 working days |
| Packaging Details: | Wooden case outside with pallet, in total 1-2CBM |
| Product name: | Tensile Test Using Universal Testing Machine |
| Capacity: | 10N、20N、50N、100N、200N、500N、1000N(Choose a set) |
| Sensor: | Model S high precision sensor |
| Display: | Computer display mode |
| Power unit: | kgf、gf、N、kN、lbf |
| Length unit: | mm、cm、Inch |
| The experimental speed: | 1—500mm/min(adjustable) |
| Force accuracy: | ±1% |

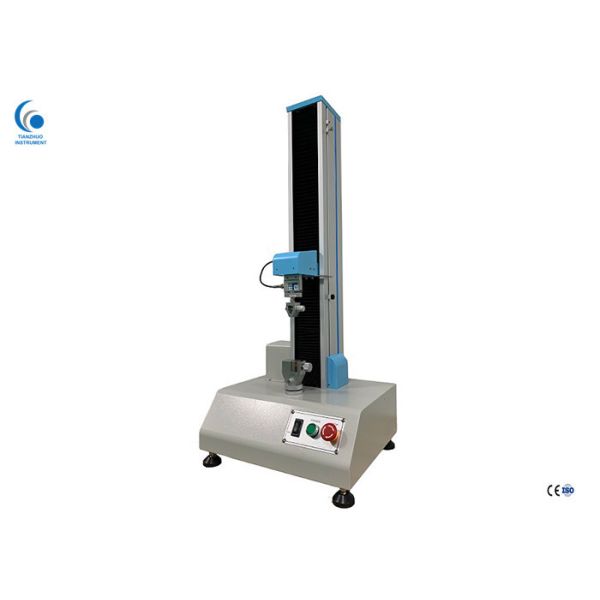

Tensile Test Using Universal Testing Machine / Tensile Testing
Equipment
Tensile Test Using Universal Testing Machine Application:
Tensile Test Using Universal Testing Machine is widely used in machinery, metallurgy, construction, transportation, aviation,
aerospace, shipping, ceramics, automotive, pharmaceutical and
electronics industries.Applied in machinery, metallurgy,
construction, transportation, aviation, aerospace, shipping,
ceramics, automotive, pharmaceutical and electronics industries.
Tensile Test Using Universal Testing Machine Software Description:
Software support: simplified Chinese, traditional Chinese, English
support, 3 types: SI international standard units, kg-cm units,
lb-inch British system units, 6 kinds of commonly used units:
n-mm-mpa, kn-mm-mpa, gf-cm-kgf/cm2, kgg-cm-kgf /cm2, lb-inch-kpsi,
kp-inch-kpsi, easy to switch units. Meet the use of different
regional standards.
Tensile Test Using Universal Testing Machine SPECIFICATIONS:
| Model | TZ-D100 Tensile Test Using Universal Testing Machine |
| Power unit | kgf,gf,N,kN,lbf |
| Length unit | mm,cm,Inch |
| Stress unit | MPa,kPa,kgf/cm2,lbf/in2 |
| Stroke resolution | 1/200,000 |
| Force accuracy | ±1% |
| The experimental speed | 1—500mm/min(adjustable) |
| effective travel | 450mm |
| Test space | 120mm |
| Stop mode | Overload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset |
| output | microwriter |
| motor drive | Servo motor + servo driver |
| Mechanical transmission | Imported synchronous wheel, synchronous belt + high precision ball screw |
| The machine power | 200W |
| The machine size(W*D*H) | 500mmx420mmx1150mm |
| Use the power supply | 220V 50Hz |
| The standard configuration | A set of fixtures, a power cord, a manual |
Tensile Test Using Universal Testing Machine Function:
1. The base is supplemented by aluminum alloy profile column
treated by advanced plastic spraying;
2. Adopt high precision, no gap ball screw and timely gauge belt as
the guarantee of transmission system accuracy;
3. Fully computerized data collection and motion control;
4. Test software under the Windows XP operating system, users can
use the existing functions of the software to complete the
mechanical test project, or edit the test method according to their
own actual needs;
