Stainless Steel Flanged Capacitor Discharge (CD) Weld Pins

Introduction & Specifications

1) Capacitor Discharge weld pins are designed to be welded to thin gauge sheet material

using tip ignition according to the capacitors discharge welding process.

2) Capacitor Discharge weld pins are available in many different sizes, from a pin diameter

of a 3 mm to 10mm.

3) Standard material are: Low Carbon Copper Flashed Steel, Stainless Steel, Aluminum Alloy,

and Brass.

4) Other grades, i.e. AISI 316 (A4), AISI 310 are available on request.

5) The flange is designed according to EN ISO 13918.

6) Pins made of steel 4.8 are protected against corrosion by copper coating.

(Thickness : 3 to 5 µm)

	D	A	B	L	Material
	3mm	4.5-5.3mm	0.9mm	6mm 8mm 10mm 12mm 16mm 20mm 25mm 30mm 40mm 50mm	Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
	4mm	5.5-6.3mm	0.9mm	6mm 8mm 10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 50mm	Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
	5mm	7.5-8.3mm	0.9mm	6mm 8mm 10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 50mm	Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
	6mm	8.5-9.3mm	0.9mm	10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 60mm 70mm 75mm	Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
	8mm	9.5-10.3mm	1.0mm	10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 60mm 70mm 75mm	Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass
	10mm	11.3-12.3mm	1.0mm	10mm 12mm 16mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 60mm 70mm 75mm	Copper Coated Steel, Stainless Steel, Aluminum Alloy, and Brass

MATERIAL	MILD STEEL	STAINLESS STEEL	ALUMINUM	BRASS
	C - 0.23% max. P - 0.04% max. Mn - 0.90% max. S - 0.05% max.	AISI Grade: 302/304/305 Standard Other grades are available.	Alloy 1100 & 5000 Series Other alloys available upon request	Alloy (lead free) 70 - 30 std. Other alloys available upon request
MECHANICAL PROPERTIES	Tensile- 60,000 psi (min.) Yield - 50,000 psi (min.)	Tensile - 85,000 psi (min.) Yield - 40,000 psi (min.)	Tensile- 42,000 psi (min.) 5000 series Yield - 30,000 psi (min.) 5000 series	Tensile - 70,000 psi (min.) Yield - 50,000 psi (min.)
PLATING	Copper plating is standard	Does not apply to Stainless
ANNEALING	Studs are annealed where required	Studs are annealed where required

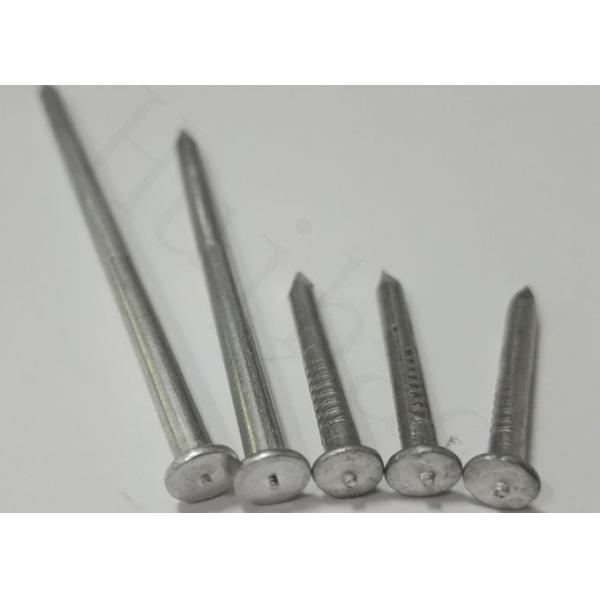

Detailed Image Of The Flanged Capacitor Discharge (CD) Weld Pins

Package And Delivery

Packing:

50pcs per cases,

6 small cases in a box,

48 boxes on a pallet.

Delivery:

Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
