| Categories | Steel Flange |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | ASTM B151 C70600 |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Client Requirements |
| Delivery Time: | 15-50 Days |
| Packaging Details: | According to Client Requirements/ Ply-wooden Case/ Pallet |
| Standard: | ASTM B151 / ASME SB151 |
| Material Grade: | UNS C70600 |
| Type: | Weld Neck Flange |
| Facing: | RF, FF, RTJ, ...... |
| Sizes: | 1/8" - 48" |
| Class: | 150LBS - 3000LBS |
| Technics: | Forging |
| Applications: | Construction, Gas and Oil Plants, Air, Steam, Petroleum Gas Water |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

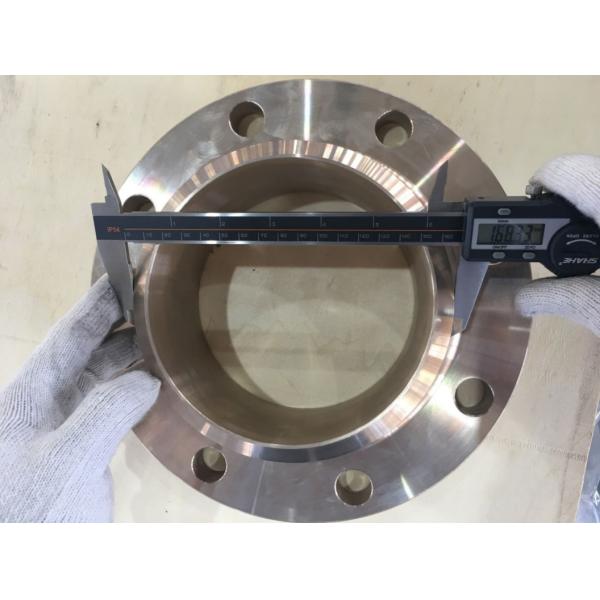

ASTM B151 C70600 Copper Nickel Alloy Weld Neck Raised Face Flange ASME B16.5
ASTM B151 UNS C70600 Copper Nickel Alloy Flange is a blend of 90% and 10% copper-nickel composition. Cu-Ni 90/10 weld neck flanges have excellent corrosion resistance, because of the presence of nickel and other strengthening components like iron and manganese which improve their capability of withstanding corrosive elements. Copper Nickel Alloy Weld Neck Flanges are used a lot in seawater piping systems, crankshafts, tubes for light-duty condensers, sea water pipe-work desalination units and in offshore platforms.
ASTM B151 UNS C70600 Copper Nickel Alloy Weld Neck Flanges have good corrosion resistance properties, high strength, and durability suitable for use in high-temperature and high-pressure environments. Copper Nickel Alloy Pipes Flanges are extremely ideal for industries in which prevention from various reducing agents is required.
Equivalent Grades:
| GRADE | UNS | WNR. | EN | AFNOR |
| Cu-Ni 90/10 | C70600 | 2.0872 | NiCr20CuMo | Z2NCUD31-20AZ |
Specification:
| Specification | ASTM B151 UNS C70600 |
| Type Of Flange | Weld Neck, Blind, Slip-On, Socket-Weld, Lap Joint, Threaded |
| Size | 1/2" To 48" |
| Available Type | Plate / Forged/ Threaded |
| Standards | ANSI/ASME B16.5, API7S-15, IS 2062, ISO70051, API, API7S-43, ASME B16.48, AWWA C207, B16.47 Series A & B, API605, BS4504, EN1092, UNI, ASME B16.36, DIN, BS1560-3.1, EN-1092, ISO, MSS S44 |
| Pressure Rating Class | Class 150 To Class 2500 |
| Face Type | Ring Type Joint, Flat Face, Lap-Joint Face, Raised Face, Large Tongue & Groove And Small Tongue Groove, Large Male-Female And Small Male-Female |
| Technique | Heat Treated/ Machined/ Forged |
Chemical Composition:
| Cu | Mn | Pb | Ni | Fe | Zn |
| 88.6 min | 1.0 max | 0.05 max | 9-11 | 1.8 max | 1 max |
Mechanical Properties:
| Density | Elongation | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point |
| 0.323 lb/in3 | 30 % | 20000 psi | 50000 psi | 2260 F |
Applications:
Heat Exchangers & Boilers
Oil & Gas Pipeline
Petrochemical Industry
Pharmaceutical Industry
Food Industry
Water Treatment
Onshore & Offshore Platform
Shipbuilding
Electric Plant
Sugar Industry
|
