FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty

Categories FTTH Fiber Optic
Brand Name: SW
Model Number: SUNWISE
Certification: ISO9001,RoHS,CE,ROSH N Type Attenuator
Place of Origin: CHINA
MOQ: Negotiable
Type: Single mode/ Multi-mode
Application: FTTH FTTB FTTX Network,indoor/outdoor,Network
Wavelength: 1310nm/1550nm/850nm/1300nm
Warranty: 3 years
Fiber type: G657A2
Price: Negotiable
Packaging Details: jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Delivery Time: jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms: Western union,T/T,PayPal
Supply Ability: 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty

FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty


Quick Detail:


  1. SC-SC DX SM Fiber Cable
  2. Low insertion loss, high return loss
  3. User friendly, compact size
  4. PVC or LSZH jacket
  5. PC/UPC polish
  6. Good exchangeability and repeatability
  7. Comply with Telcordia GR-326-CORE specification

Applications:


Videos

Active device termination

Premise installations

Telecommunication networks

Local area networks (LANs)

Data processing networks

Wide area networks (WANs)

Industrial, medical and military

Fiber count1F/2F/4F
Attenuation1310nm:≤0.36 1550nm:≤0.22
Color Of fiberBlue Orange Green Brown
Fiber TypeG652D/G657A1/G657A2

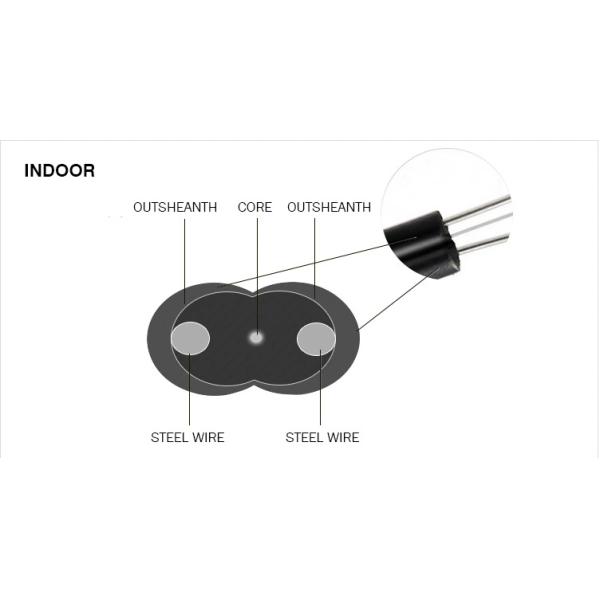

Strength memberSteel wire/FRP/KFRP
Outer sheathLSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range-20 ℃ to + 70 ℃
Installation temperature range-0 ℃ to + 60 ℃
Transport and storage temperature range-20 ℃ to + 70 ℃
Tension Load (N)Short term :800N Long term :500N
Crush Load(N)Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius30 x OD
Minimal operation bending radius15 x OD
Cable markingThe marking length 1meter apart , as required
