Large Rigidity Small Axial Space Roller Thrust Bearing 29430 E High Power Marine Gearbox

Large rigidity and small axial space spherical roller thrust bearings 29430 E High-power marine gearbox

Quick Details:

Principal Dimensions
d: 150mm
D: 300mm
H: 90mm

Basic Load Ratings
Dynamic: 1860kN
Static: 5100KN

Fatigue Load Limit: 520kN

Minimum Load Factor: 2,5A

Speed Ratings
Reference speed: 1 200 r/min
Limiting speed: 2200 r/min

Mass: 28,0kg

Feature:

1. Thrust roller bearings are used to support axial and radial combined loads,

but the radial load must not exceed 55% of the axial load.

Large rigidity and small axial space.

2. Large rigidity and small axial space.

3. This spherical roller thrust bearing has a long roller, a large diameter, a large number of rollers, a high load capacity, and is usually oil lubricated.

Benefits

Insensitive to some shaft misalignment
Lower operating temperature
Long bearing service life
High reliability

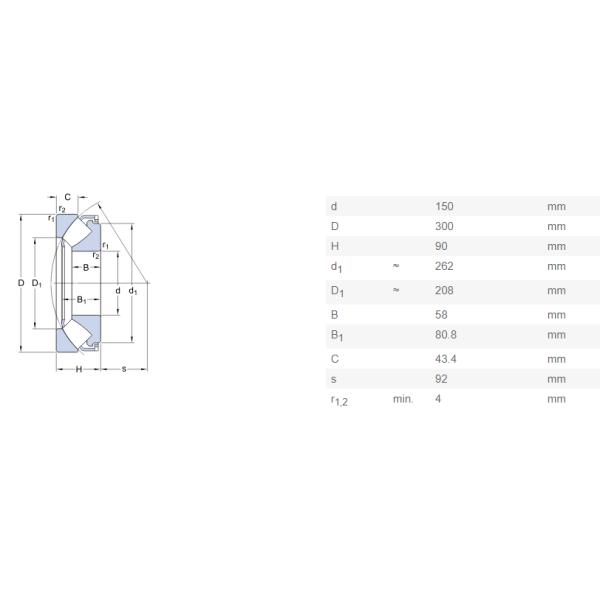

The Drawing

Description:

Spherical Roller Thrust Bearing (29430E)

Spherical roller thrust bearings are extremely well suited for heavy-duty applications, with axial loads or combined axial and radial loads.

They are self-aligning and can accommodate low as well as high speeds.

Due to their design, various degrees of stiffness can be arranged.

Versatility is a characteristic of spherical roller thrust bearings as they can contribute to space-saving and cost-effective designs.

The following pages provide more detailed explanations about this bearing type and how it can be used.

Spherical roller thrust bearings :

Applications:
