| Categories | Butt Fusion Welding Machine |
|---|---|
| Place of Origin: | Sichuan, China |
| Brand Name: | CR |
| Certification: | CE,ISO, ISO,CE |
| MOQ: | 1 Sets |
| Price: | negotiated |
| Model Number: | CRGH315 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Delivery Time: | 3-10days |
| Packaging Details: | wooden case |
| Product name: | Multi - angle welding machine |
| Power: | 8.15kw |
| Warranty: | 1 Year |
| Working range: | 110-315mm |
| Materials: | HDPE,PP,PVDF |
| Weight(Standards composition): | 757kg |

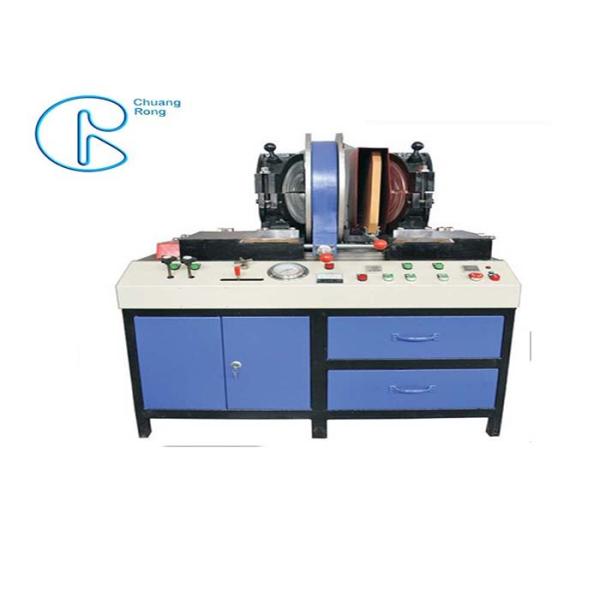

Multi - angle Plastic Butt Fusion Pipe Machines With Hot Plate
Multi - angle Welding Machine Description
| Model | CRGH315 |
| Range (mm)  | 110/125/140/160/180/200/225/250/280/315 |
| Weight | 757KG |
| Power Supply | 380V/415V 50Hz/60Hz |
| Total power | 8.15KW |
| The heating Plate Temperature | 170-250℃(±5℃) MAX270℃  |
| Type | Elbow,90 degree equal tees,crosses,equal branch tee and wye |
| Optional Accessory | Y-clamps with inserts,Narrow clamps with inserts,Stub end holder,Auxiliary stand,Wye Clamps |
Multi - angle Welding Machine Uses and Features
1. Applicable in the workshop production of PE, PP, PVDF elbow,
Tee, Equal Stone, 45 ° and 60 ° Y-type tee, lengthening the
injection of short pipe fittings, pipe fittings production assembly
etc.
2. Heating plate with separate temperature control system, Teflon
coating;
3. Electric cutter, safety limit switch to prevent accidental
start- cutter;
4. Independent dual-channel timer, you can record two time periods
endothermic and cooling, alarm timer end, user-friendly.


                             |
