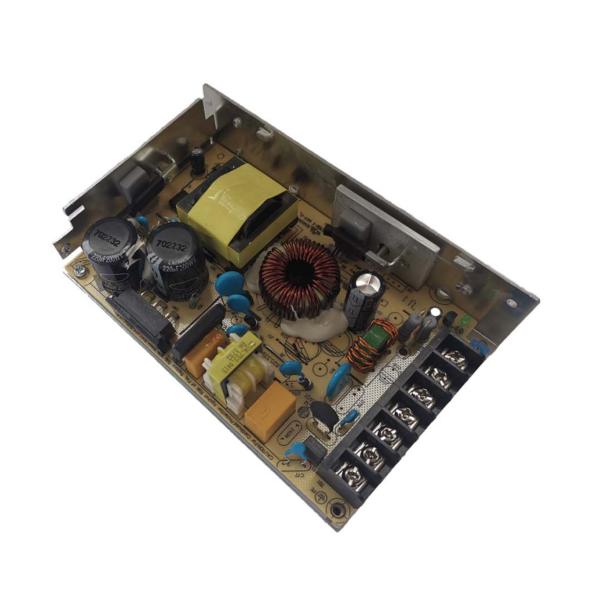

Small 100W Adaptor Switching Power Supply , EN55024 Replacement Industrial Power Converter

Small 100W Adaptor Switching Power Supply , EN55024 Replacement Industrial Power Converter

Small 100W Adaptor Switching Power Supply , EN55024 Replacement Industrial Power Converter
Small 100W Adaptor Switching Power Supply , EN55024 Replacement Industrial Power Converter
Categories Industrial Power Supply
Brand Name: HAOLI
Certification: CE，ISO9001，ROHS
Place of Origin: ChengDu
Delivery Time: 10 work days
MOQ: 1000
Payment Terms: D/P, T/T, D/A, L/C
Price: Negotiation
Input voltage: 90VAC~264VAC
Input frequency: 47HZ~63Hz
Operating temperature: -20℃~70℃(refer to output load derating curve)
Safety standard: UL60950-1, EN60950-1
EMC standard: EN55022 Class B, EN55024
Weight: 0.42kg/pcs
Contact Now
Company Info.
Chengdu Haoli Electronic Technology Co.,Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Small 100W Adaptor Switching Power Supply , EN55024 Replacement Industrial Power Converter

100W Single Output (with PFC) Industrial Power Supply


Product features


Universal AC input / full range
PF>0.96 @ 115VAC, >0.93 @ 230VAC

Built-in remote ON/OFF control
Standby power consumption≤0.5W

Power on indication
Integrated design, small size
Protection: Overload / Over voltage / Short circuit / Over temperature

100% full load burn-in test

3 years warranty


Specifications
Input voltage 90VAC~264VAC
Input frequency 47HZ~63Hz
Inrush current 40A @ 230VAC
20A @ 110VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 105%~150%
Over voltage protection 105%~140%
Operating temperature -20℃~70℃(refer to output load derating curve)
Safety standard UL60950-1, EN60950-1
EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1 5kVAC, 1min
I/P-FG: 1 .5kVAC, 1min
O/P-FG: 0.5kVAC, 1min
Weight 0.42kg/pcs
Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage
P/NOutputTol.R&NEffi.Load Regulation
ESF-100-55V,17A±2.5%100mV80%±2%
ESF-100-1212V,8.4A±1.5%100mV87%±1%
ESF-100-2424V,4.2A±1.5%150mV88.5%±1%
ESF-100-4848V,2.1A±1.5%240mV90%±1%

FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
