| Categories | Carbon Steel Ball |
|---|---|
| Brand Name: | JN |
| Model Number: | 5/32" 3.969mm |
| Certification: | SGS ISO |
| Place of Origin: | China |
| MOQ: | 500kg |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P |
| Supply Ability: | 25 Tons per Month |
| Delivery Time: | 7-15 days |
| Packaging Details: | Ploy bag+25kg carton box+1000kg wooden box |
| Product Name: | Dry Carbon Steel Balls |
| Grade: | G200 |
| Hardness: | HRC55-HRC63 |
| Density: | 7.82g/cm3 |
| Young's Modulus: | 200GPa |
| Feature: | Long time anti-rust |

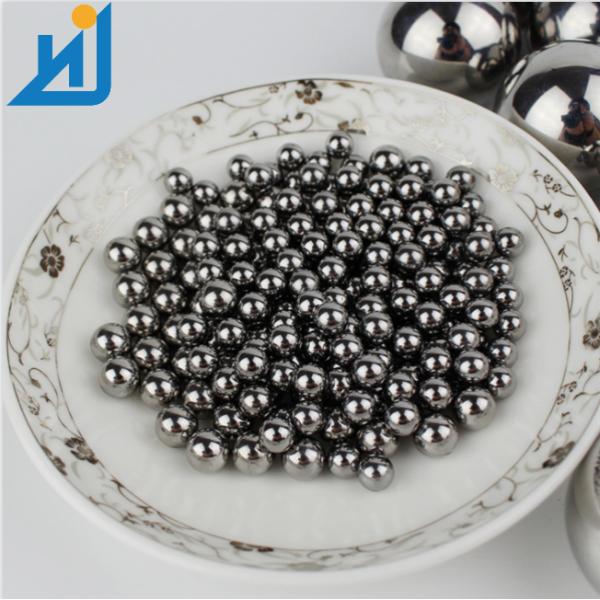

Long Anti-rusted Dry Lower Carbon Steel Ball G200 For Steel Ball
Finishing Shots 5/32"
Carbon steel balls are made from a combination of steel and carbon,
with carbon present in concentrations lower than 0.093%. The carbon acts as a hardening
agent, providing additional strength, at a lower cost than alternative hardening techniques.They can be used in anything from furniture castors to sliding
rails, polishing and milling machines, peening processes, and welding appliances, depending on the type of
carbon steel balls you choose.
Chemical Composition
Type | %C | %Si | %Mn | %P | %S |
|---|---|---|---|---|---|
1010 | 0.08-0.13 | 0.10-0.35 | 0.30-0.60 | 0.040 max | 0.050 max |
1015 | 0.12-0.18 | 0.10-0.35 | 0.30-0.60 | 0.040 max | 0.050 max |
Mechanical Properties
Property | Type | U.o.M. | Values | U.o.M. | Values |
|---|---|---|---|---|---|
Hardness | Mechanical | [HRC] | 55 - 65 | - | - |
Ultimate tensile strength | Mechanical | [MPa] | 300 - 400 | [psix10^3] | 43 - 58 |
Service temperature | Thermal | [ºC] | -40 / 500 | [ºF] | -40 / 932 |
International Standards
ITA | USA | GER | FRA | UK | RUS | CHN | JPN |
|---|---|---|---|---|---|---|---|
C10 | 1010 | 1.1121 | CC10 | 040A10 | 10 | 10 | S10C |
C15 | 1015 | 1.1141 | XC12 | 080M15 | 15 | 15 | S15C |
Applications |
|---|
Furniture rails and rollers, drawers and rolling bearings, locks,
oilers and greasers, skates, caddies, toys, belt and roller conveyors, tumble finishing. |
|
