| Categories | Electric Truck Battery |
|---|---|
| Brand Name: | Soundon |
| Model Number: | SD-EV-345.6-125 |
| Certification: | CE, MSDS, ROHS,UL |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Supply Ability: | 500units / week |
| Delivery Time: | 30 working days after payment |
| Packaging Details: | wooden package |
| Voltage range: | 345.6V |
| Capacity: | 125Ah |
| Total energy: | 43.2kWh |
| Max. charging current: | 125 |
| Max. Instance discharging current: | 300 |
| Protection Level: | IP67 |
| Cooling Method: | Natural cooling |
| Battery system instant discharging current (Max.): | 250A |
| Company Info. |
| Soundon New Energy Technology Co,.Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

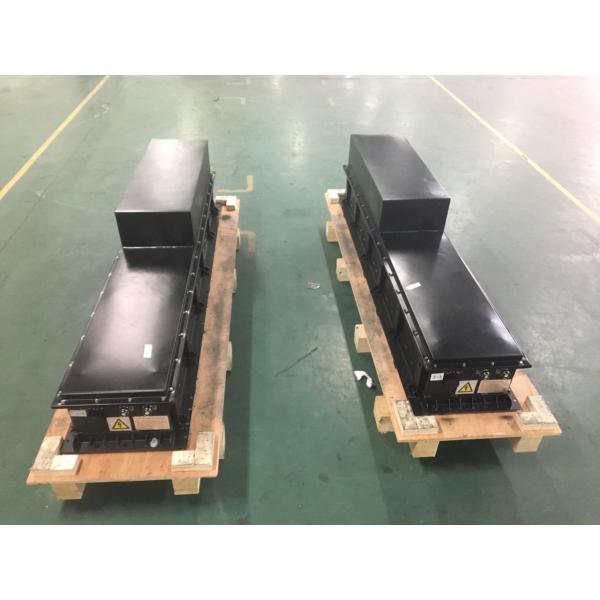

345.6V125Ah Electric Truck Battery With High Energy Density For Electric Pickup Truck
| Project | Parameter |
| Voltage Range | 288V---403.2V(345.6V) |
| Battery System Whole Energy (KWH) | Rated :43.2kWh |
| Battery System Whole Capacity(Ah) | Rated :125Ah |
| Capacity difference for Modules(Ah) | ≤1.5Ah |
| Single Battery cell | SEPNi76190190P-25Ah |
| Battery Cell Configuration | 5P1S |
| Battery system Working Temperature | Discharge-30~50℃,Charge 0~45℃ |
| Battery system Surrounding environment relative humidity | 5%~95% |
| Battery system storage Temperature | -20～25℃(3-6 Month,50%SOC) -20～45℃(1-3 Month,50%SOC) -20～60℃(≤1 Month,50%SOC) |
| Battery system Max. charging current | 125A |
| Battery system Max. Instance discharging current | 300 |
| Battery system standard discharging current | 100A |
| Battery system instant discharging current (Max.) | 250A |
| Battery system Max. Continuous discharging current | 125A |
| Insulation Resistance Testing( Ω) (Main positive&Main Negative VS Battery case | ≥20MΩ |
| Battery system on Vehicle Waterproofing class | IP67 |
| Cooling system | Air Cool |
Battery cell parameters
