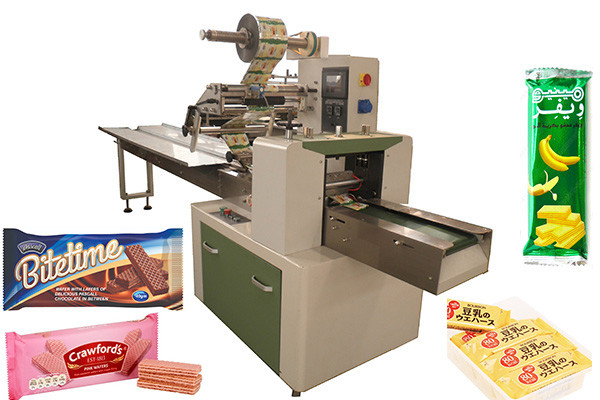

1.YX-320WFP YIXUN pilow packing machine for croissant bread custard
cake swiss roll 220pcs/min

2.Features
1. Dual frequency conversion control, instant bag length setting
and cutting without film feeding test run, saving time and packing
film.
2. Man-machine interface, convenient and quick parameter setting.
3. Fault self-diagnosis function, clear failure display.
4.High sensitivity photoelectric tracking system, digital setup for
positioning and precisely cutting and sealing.
5. Independent PID temperature control, apply for different types
of packing materials.
6.Positioned stop function, not stick to knife and not waste
packing film.
7.Simple driving system, stable performance, convenient
maintenance.
8.All controls are achieved by software, good for function
adjusting and upgrading.
3.Applications
This packing machine is suitable for packing regular shape products
in box or in trays such as biscuit, popping-rice-cake, custard
cake, chocolate, bread, instant noodle, moon cake, walnut biscuit,
cookies biscuit and so on.
4.Optional Devices
1.Coding Device
2. Line Sealing Wheel
3. Moire Terminal Sealing Mold
4 Extra Big Screen
5.Parameters:
| Model | YX-280 | YX-320 |
| YX-280A | YX-280B | YX-280C | YX-280D | YX-320A | YX-320B |
| Film Width | Max.280mm | Max.240mm | Max.180mm | Max.350mm |
| Bag Length | 90~220/150~330mm | 65~190/120~280mm | 90~220mm | 50~115/45~90mm | 65~190/120~280mm | 90~220/150-330mm |
| Bag Width | 50~140mm | 30~110mm | 30~80mm | 50-160mm |
| Product Height | Max.40mm | Max.40mm | Max.55mm | Max.35mm | Max.40mm | Max.60mm |
| Rewind Diameter | Max.280mm | Max.320mm |
| Packing Speed | 50~250 packs/min | 40~280packs/min | 60~350packs/min | 40~230packs/min |
| Voltage | 220V/380V 50HZ/60HZ |
| Machine Size | (L)3770×(W)720 ×(H)1450 mm | (L)4000×(W)950 ×(H)1450 mm |
| Machine Weight | 400kg | 500kg |
Semi automatic wafer biscuit process line
