| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | OEM Produce |
| Model Number: | GYFTY-G |
| Certification: | CPR. CE. ROHS. |
| Place of Origin: | Hangzhou, China |
| MOQ: | 10km |
| Supply Ability: | 1000/ month |
| Delivery Time: | 15days |
| Packaging Details: | wooden drum |
| Type: | Outdoor Fiber Optic Cable GYFTY-G(Yarn) |
| Application: | Networking, CATV, HTTP, HTTS |
| Structure: | Loose Tube Cable |
| Length: | 1km, 2km or as required |
| Fiber Type: | G.652, G.655 or G.657 |
| OEM: | Available |
| Company Info. |
| Hangzhou Aite Cable co.,Ltd. |
| View Contact Details |
| Product List |
Outdoor Fiber Optic Cable GYFTY-G(Yarn) Duct and Aerial Loose Tube Cable
Armored Loose Tube Single Jacket/ Single Armore Cable
Temprature Range
Operating: -40℃ to +70℃
Storage:-50℃ to +70℃
Installation: -30℃ to +70℃
Bending Radius:
Static: 10D
Dynamic: 20D
Description:
Loose Tube Single Jacket All Dielectric Cables are lightweight with small diameter and designed for duct and aerial(lashed) installation.
Features:
Up to 288Fibers
Loose tube gel-filled construction for superior fiber protection.
All dielectric structure
UV and Moisture resistant design.
Applications:
Backbones and Access.
Installed in ducts, lasher and aerial.

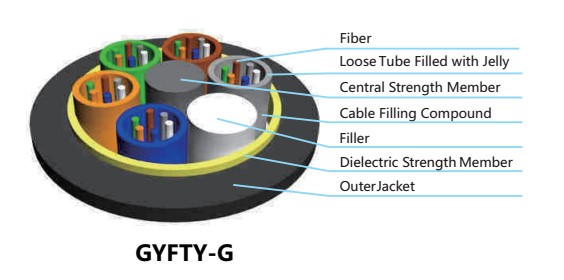

Structure and Technical Specifications GYFTY-G
| Fiber Count | Nominal Diameter(mm) | Nominal Weight(kg.km) | Max Fiber Per Tube | Max No. of Tubers+Fillers | Allowable Tensile Load(N) | Allowable Crush Resiatance(N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 9.8 | 75 | 6 | 6 | 2700 | 1000 | 1000 | 300 |
| 38~72 | 10.8 | 97 | 12 | 6 | 2700 | 1000 | 1000 | 300 |
| 74~96 | 11.3 | 102 | 12 | 8 | 2700 | 1000 | 1000 | 300 |
| 98~120 | 12.6 | 126 | 12 | 10 | 2700 | 1000 | 1000 | 300 |
| 122~144 | 15.6 | 191 | 12 | 12 | 2700 | 1000 | 1000 | 300 |
| >216 | Available upon customer`s reuest | |||||||
Note: This datesheet can only be a reference, but not a supplement to
the contract. Please contact us for more detailed information.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
|
