1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts

Categories Excavator Hydraulic Pump
Brand Name: OEM
Model Number: EX100 EX120 EX135
Place of Origin: China
MOQ: 1 PCS
Price: Negotiable
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Delivery Time: 3-7 working days
Packaging Details: Wooden box for heavy parts, paper carton for light parts
egory: Excavator Hydraulic parts
Machine Model: EX100 EX120 EX135
Parts No.: 1020401
Parts name: Pump head
Warranty: 6/12 Months
Package: standard export carton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts


  • 1020401 Pump Head Used For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts


  • Spec Sheet

Excavator spare parts namePump head
Equipment ModelEX100 EX120 EX135
Parts egoryExcavator hydraulic pump parts
Spare parts ConditionBrand new
MOQ of order(PCS, SET)1
Parts AvailabilityIn stock
Delivery Lead time1-3 days

  • Appliion

EX100-5 EX100-5 JPN EX100M-5 EX120-5 EX120-5 JPN EX120-5HG EX120-5LV JPN EX120-5X EX120-5Z EX120SS-5 EX130H-5 EX130H-5 JPN EX130K-5 EX135UR EX135UR-5 EX135US-5 EX135USR EX135USRK EX140US-5 Hitachi

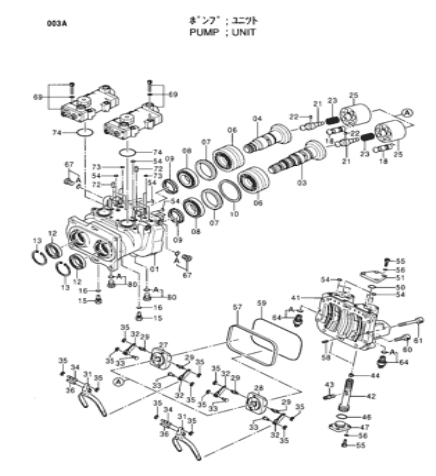

  • Parts Diagram


Pos.Part NoQtyParts nameComments
+++++++[1]PUMP;UNIT9151424
11020513[1]CASING;PUMP
32036963[1]DISC;DRIVING
42036965[1]DISC;DRIVING
64339254[2]BRG.;ROL.
74348299[2]RING
84338325[2]BRG.;ROL.
94180790[2]NUT;BRG.
104331993[1]RING;THRUST
124340358[2]SEAL;OIL
134086775[2]RING;RETAINING
154233165[2]PLUG
16957366[2]O-RING
189742464[14]PISTON
214339296[2]SHAFT;CENTER
224198956[2]PIN
234180786[2]SPRING;COMPRES.
252036958[2]ROTOR
272036441[1]VALVE
282037013[1]VALVE
294179179[4]PIN
313075855[2]LINK
329724756[4]LEVER
334179177[4]PIN
344179176[2]PIN
354146370[12]RING;RETAINING
364200227[2]PIN
411020401[1]HEAD
423068226[2]PISTON;SERVO
434330909[2]PIN
444179838[2]SCREW;SET
464355081[2]O-RING
474330951[2]STOPPER
504355080[2]O-RING
514330950[2]STOPPER
544180349[20]O-RING
55M340825[16]BOLT;SOCKET
564514388[16]WASHER;SPRING
573071500[1]RING;BACK-UP
584099290[2]PIN;SPRING
594345061[1]O-RING
60M341245[10]BOLT;SOCKET
61M341290[2]BOLT;SOCKET
644355012[2]SENSOR;PRES.
64A.4365826[1]O-RING
679134110[2]PLUG
67A.957366[1]O-RING
69-9153170[1]REGULATOR<for transportation>
699151423[2]REGULATORI 9153170 <for assembly of machine>9151423
724515041[4]PIN;SPRING
734343074[4]O-RING
744348665[2]O-RING
809134111[2]PLUG
80A.4509180[1]O-RING

  • Description


Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.

  • Advantage

1. The pump and valve parts are built to fit to the genuine excavator system.

2. The pump parts and valve are supplied strictly according to the genuine parts alog.

3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
