| Categories | Stainless Steel Woven Wire Mesh |
|---|---|
| Place of Origin: | Hengshui,China |
| MOQ: | 50 square meter |
| Price: | 0.15-10 us dollar/square meter |
| Supply Ability: | 3000 rolls per month |
| Delivery Time: | 5 working days for item in stock |
| Packaging Details: | Water proof paper inner plastic bags with wooden cases on pallet;or as customer request |
| Material: | Stainless steel wire |
| Product Name: | Stainless steel wire mesh |
| Weave type: | Plain |
| Application: | Screen |
| Width: | 0.9144m, 1.22m or customized |
| Length: | 30m or customized |

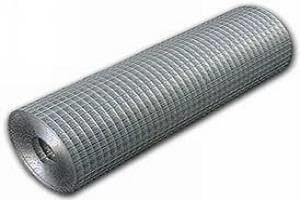

Super Duplex Stainless Steel Uns S32750 Woven Wire Mesh
Stainless steel woven wire mesh offer flat surface, firm structure and good integrity. It is widely used in industry, agriculture, construction, breeding, transport, mining exploitation, transport, entertainment facilities and other public places.
Materials: Stainless steel woven wire meshes are generally made of stainless steel Type 302,304,304L,316,316L,321 and 430 etc. Many different grades of stainless are used in wire cloth.T304 is the most common one, but others are also used in specific applications
Weaving Types: Plain or Twilled Weave, Plain or Twilled Dutch Weave, Five heddle Weave, Reverse Plain or Twilled Dutch Weave
The weaving is determined according to our customers' specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.
Stainless steel woven wire mesh is widly used in mining, petroleum, chemical industry, food industry , pharmaceutical industry and sifting and screening mesh in chemical and chemical fiber industry.
| UNS s31803 | s32205 | |||||||||
| chemical composition | ||||||||||
| C | SI | MN | P | S | NI | CR | MO | N | ||
| ASTM A240/UNS S31803 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.03 | ≤0.02 | 4.5-6.5 | 21.0-23.0 | 2.5-3.5 | 0.08-0.20 | |
| ASTM A240/UNS S32205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.03 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 | 0.14-0.20 | |
| UNS s32750 | ||||||||||
| Steel grade | C | MN | SI | S | P | CR | NI | MO | CU | N |
| UNS s32750SAF2507 | ≤0.03 | ≤1.2 | ≤0.08 | ≤0.02 | ≤0.035 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | ≤0.5 | 0.2 |
| UNS s32304 | ||||||||||
| C | SI | MN | P | S | NI | CR | MO | N | cu | |
| ≤0.03 | ≤0.03 | ≤2.5 | ≤0.04 | ≤0.03 | 3.0-5.5 | 21.5-24.5 | 0.05-0.60 | 0.05-0.20 | 0.05-0.60 |
| UNS S31803 & UNS S32750 & UNS S32304 Wire Mesh | |||
| Mesh Count | Wire diameter(mm) | Aperture(mm) | Max width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
Product Description
Plain weave stainless steel wire mesh
Plain weave is the most commonly used and simple of weaving.it adopted one
over one under way,As 1*1 weave.The wire hole is square shape.
Twill Weave stainless steel wire mesh
Twill weave is done by passing the weft thread over one or more warp threads
and then under two or more warp threads and so on,For example,
2*2,4*4 weave.
Dutch Weave stainless steel wire mesh
It is woven with a large wire diameter in the warp direction and a
relatively smaller wire in the weft direction.
Details sheet:
Stainless steel wire mesh plain weave
Our products series
Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.
We welcome clients from all over the world.
|
