| Categories | Metal Melting Furnaces |
|---|---|
| Brand Name: | WONDERY |
| Model Number: | WR-ZQQ-600 |
| Certification: | CE |
| Place of Origin: | JIANGSU |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 stes/year |
| Delivery Time: | 30 days |
| Packaging Details: | Plywood case suitable for sea transportation |
| Name: | metal melting furnaces |
| capacity: | 600kg zinc |
| power: | 5.5KW |
| Max temperature: | 1000 degree celsius |
| Fuel: | natural gas |
| consumption: | max 30m3/h |
| Company Info. |
| Wuxi Wondery Industry Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
600Kgs Zinc Powder Metal Melting Furnaces Rotary Type Natural Gas Fired
1. Application
The zinc metal melting furnace is used to melt zinc powder working with natural gas.
The natural gas is a clean energy which doesn’t cause pollution to the environment.
2. Supply Scope of zinc metal melting furnace
| No. | Item | Unit | Notes |
| 1 | Furnace body | 1 set | 6mm steel plate |
| 2 | Lifting and rotary mechanism | 1 set | ELECTRIC |
| 3 | Inner tank | 1 piece | F08 20mm |
| 4 | Burning system | 1 set | RIELLO |
| 5 | Electrical control cabinet | 1 set | PID control |
3. Floor area and power supply
The space preserved for installing the zinc metal melting furnace is not less than 6m(L)*4M(W)*4M(H).
The control cabinet is placed inside the control room near the furnace. But there should be enough
distance between the furnace and control room to ensure control room safety.
The total loading power is not less than 5.5KW. It is mainly used for fan motor, rotary motor, and
draft fan.
4. Main Technical Parameters of zinc metal melting furnace
4.1 overall size: 3310(L)×2258(W)X1564(H) 4.2 max furnace temperature:1000℃ 4.3 temperature rising speed: ～300℃/h, adjustable; 4.4 rotary speed: 10~12m/min 4.5 max capacity: 600Kg 4.6 fuel type: natural gas; heat value: Q=8600kcal/kg 4.7 max consumption: 23m3/h 4.8 max air consumption: 60M3/h 4.9 max fume quantity: 53M3/h 4.10 burner type: natural gas burner, Riello, 1 set; 4.11 temperature zone: 1 zone; 4.12 temperature uniformity: ±30℃ (temperature of the effective heating zone measured at the holding stage) |

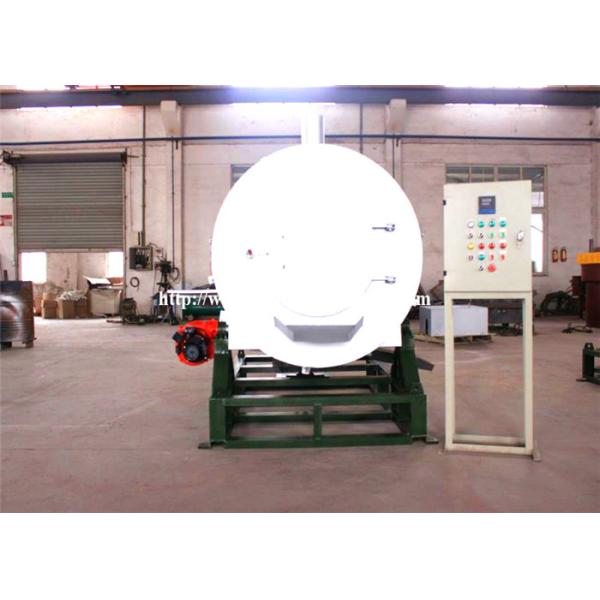

Rotary zinc metal melting furnace in our workshop:
|
