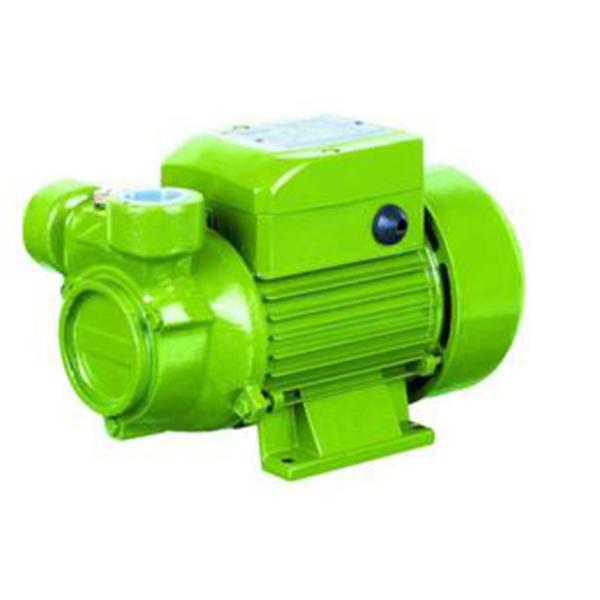

Agricultural Electric Peripheral Water Pump High Pressure 0.5HP Cast Iron Body

Categories Peripheral Water Pump
Brand Name: ZOZHI
Model Number: BA3
Certification: CE/SGS/ISO
Place of Origin: China
MOQ: 1pc
Price: negotiated
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Delivery Time: 25 working days after received your payment
Packaging Details: Packed in cartons , overall size:295x165x175mm/pc, N.W.: 5.5kgs
Item: Eelctric Pump
Usage: Water
Power: 0.5HP / 0.37KW
Flow Max: 35L/Min
Head Max: 35M
Impeller: Brass impeller
Feature: High pressure
Frequency: 50 HZ
Product Name: Peripheral Water Pump
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Agricultural Electric Peripheral Water Pump High Pressure 0.5HP Cast Iron Body



Agricultural Electric Peripheral Water Pump High-Pressure 0.5HP Cast Iron Body


An advantage of Vortex Water Pump:

A) Have the Ability To Design The Products Based On Your Original Samples

B) Most Spare Parts are Produced By Ourselves.
C) Strictly and Perfect Management is Guaranteed For Production
D) Chinese best quality bearing C & U brand
E) Enamel technique: clean, healthy, environmental, prevent secondary pollution

F) 100% output power and 100% good quality copper wire



Applications:


These project products are widely used in small TCL, steam generators, small water supply, household, vegetable greenhouse, garden, and other areas. The pump transfer the non-flammable and explosion liquid without the particles, fiber. The living condition could be much improved.



Structural Characteristics:


Main SpecificationStandardOptional
Transmission mediumClean Water
Pump bodyCast Iron
ImpellerBrass/Noryl PPO
Motor housingAluminum
Stator&Rotor1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front coverCast IronBrass plate embedded to avoid impeller jam
BearingChinese Best Quality BearingNSK, SKF, or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction lift9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





Peripheral Water Pump Warranty:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our Service:

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


Peripheral Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


FAQ:


1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
