| Categories | Hollow Shaft Motor |
|---|---|
| Brand Name: | ZOZHI |
| Model Number: | HS711-4 ( HS Series) |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 25 working days after received your payment |
| Packaging Details: | Packed in cartons,veneer case or wooden case. |
| Product Name: | Hollow Shaft Motor |
| Application: | High Pressure Pump |
| Output: | 0.25-22kw |
| Pole: | 2,4,6 |
| Flange Size: | 71-160 |
| Ampere: | 0.8A-34A |
| Insulation: | Class B |
| Rotation direction: | Clockwise |
| Company Info. |
| Fuan Zhongzhi Pump Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

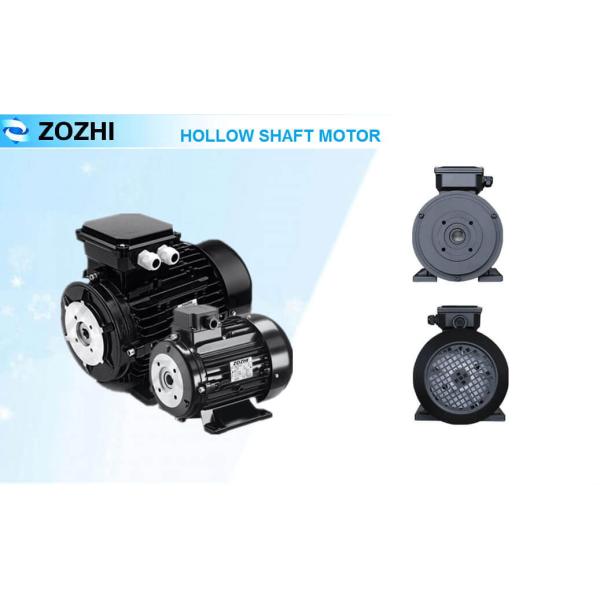

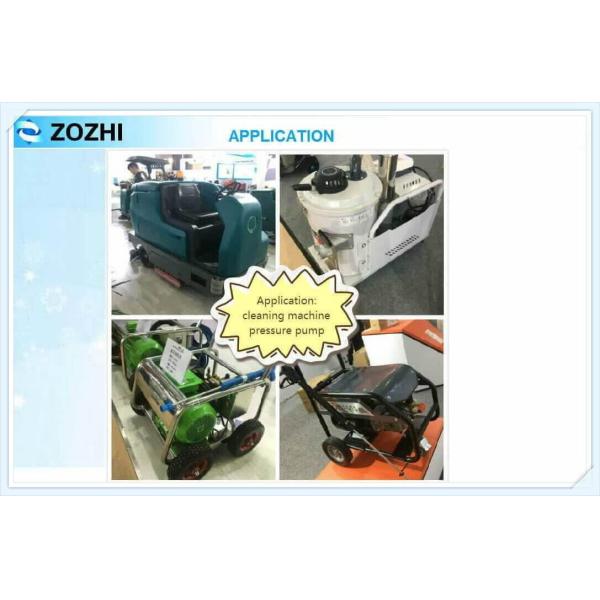

High-efficiency aluminum housing hollow shaft electric motor. The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and, at the same time, provides a reliable and cost-efficient solution.
Operating conditions:
| Output | 0.25-22kw | Frame size | 71-160 |
| Duty | S1 | Speed | 1000/1500/3000 rpm |
| Ambient temperature | -15℃≤θ≤60℃ | Rated voltage | 220V, other voltage on request |
| Frequency | 60HZ | Protection class | IP55/54 |
| Phase | 3 | Pole | 2,4,6 |
| Insulation Class | B, F | Efficiency | IE3/IE2 |
Option feature:
1. small volume
2. More transmission torque
3. Higher transmission efficiency
4. Lower noise
5. More convenient to install
6. Simple maintenance
7. durable
8. Longer service life
Sizing table:
| THREE-PHASE 2 POLES 3000RPm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2780 | 0.82 | 82 | 400 | 0.8 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.83 | 81 | 400 | 1.2 |
| 90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| 90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| 90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| 100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| 100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| 100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| 112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| 132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| 132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| 132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| 132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| 160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| 160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| 160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
| THREE-PHASE 4 POLES 1500RPm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
| 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
| 713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| 90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| 90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| 100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| 100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| 100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| 100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| 112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| 112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| 112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| 112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| 132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| 132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| 132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| 132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| 132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| 160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| 160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
| THREE-PHASE 6 POLES 1000RPm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 71-6 | 0.25 | 0.35 | 880 | 0.73 | 45 | 400 | 1.1 |
| 90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
| 100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
| 112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
| 112M2-6 | 3 | 4 | 940 | 8 | 79 | 400 | 6.9 |
| 132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
| 132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
| 132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
| 132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
| 160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
| 160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |

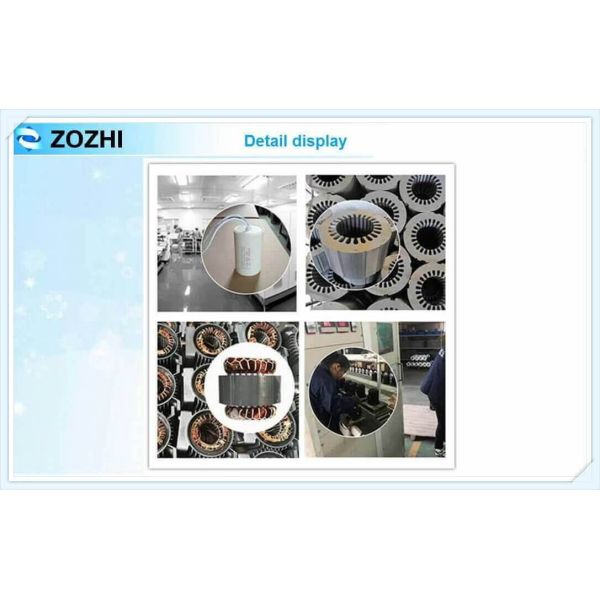

High-quality Capacitor
Adopt suitable capacitor made by advanced production line, heat resistant to 85℃; the working lift is motor than 10000 hours.
Cold-rolled Stator
Good quality cold-rolled silicon from wu gang brand made by high-speed punching machine, less burr, high concentricity, and stability.
Coil with 100% Copper wire
100% copper wire, with thermal protector, make the pump stop working automatically at the condition of jam or overload, etc.
No leakage Of winding
100% coil testing to make sure each coil is energized, and no leakage at high voltage condition
 |
 |
 |
 |
 |  |
 |
 |
 |
Hollow Shaft Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at
sight.
|
