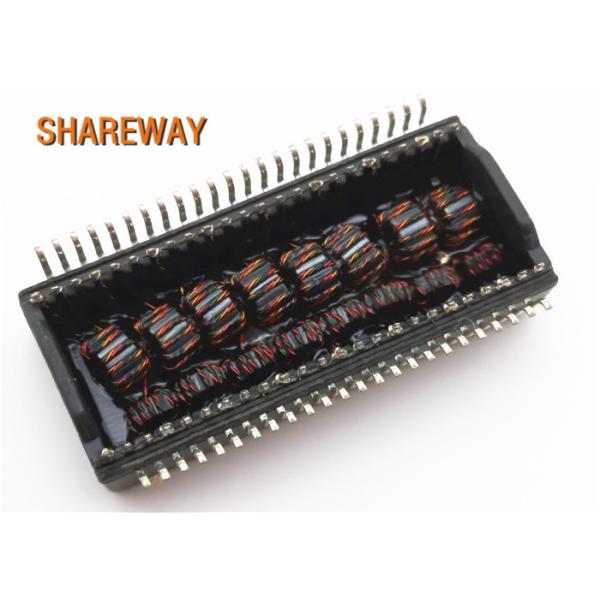

Name: Thru Hole Ethernet Lan Transformer Common Mode Chokes For EMI Suppression
Brand: Shareway
Price: 1 USD

Home > Transformers >

Thru - Hole Ethernet Lan Transformer Common Mode Chokes For EMI Suppression

Categories	Ethernet Lan Transformer
Brand Name:	Shareway
Model Number:	MOX-LAN-TRFRC
Certification:	RoHS,CE,UL
Place of Origin:	Guangdong,shenzhen
MOQ:	100/200/500
Price:	Supportive
Payment Terms:	TT,Paypal,West Union
Supply Ability:	1kk-pcs/month
Delivery Time:	Stock Or 3 weeks
Packaging Details:	Tube
Product name:	Lan Transformer MOX-LAN-TRFRC Surface mount / Thru-hole and DIP packages available
Mount type:	Surface mount / Thru-hole and DIP packages
Type:	Lan transformer / common mode chokes
Application:	EMI suppression
Material:	Base / core
Color:	Black

Contact Now

Add to Cart

Company Info.

SHAREWAY TECHNOLOGY CO., LTD.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Lan Transformer MOX-LAN-TRFRC Surface mount / Thru-hole and DIP packages available

Description:

10 BASE-T ISLOATION TRANSFORMERS are designed for adaptor cards, hubs, maus and motherboard applications.
Low cost.
Available with common mode chokes for EMI suppression.
Meets IEEE 802.3 10Base-T specifications.
RoHS compliant.
Surface mount, Thru-hole and DIP packages available.

Part Number	Turns Ratio (±5%) Transmit	Turns Ratio (±5%) Receive	Primary Pins	Common Mode Choke	Sine Wave Inductance OCL (μH Min.)	Interwinding Capacitance Cww (pF Max.)	Leakage Inductance LL (μH Max.)	DCR (Ω Max.)	Hipot (Vrms)
MOX-LAN-TRFRC-128	1 CT:1.414CT	1CT:1CT	6-8/1-3		200	15	0.5	0.4	2000
MOX-LAN-TRFRC-356	1 CT:1.414CT	1CT:1CT	6-8/1-3	X	200	12	0.5	0.6	2000
MOX-LAN-TRFRC-467	1 CT:2CT	1CT:1CT	6-8/1-3	X	140	12	0.2	0.6	2000
MOX-LAN-TRFRC-2023	1 CT: 2.5CT	1CT:1CT	6-8/1-3	X	200	15	0.5	0.4	2000
MOX-LAN-TRFRC-4001	1 CT:2CT	1CT:1CT	6-8/1-3	X	112	8	0.3	0.8	2000
MOX-LAN-TRFRC-2024¹	1 CT: 2.5CT	1CT:1CT	6-8/1-3	X	350	30	0.8	0.6	2000
MOX-LAN-TRFRC-85454	1:1.414	1:1	3-4/1-2		140	12	0.2	0.4	2000
MOX-LAN-TRFRC-85726	1CT:1CT	1CT:1CT	1-3/6-8		200	10	0.2	0.3	2000
MOX-LAN-TRFRC-85745	1CT: 1.414CT	1CT:1CT	6-8/1-3		140	12	0.2	0.3	1500
MOX-LAN-TRFRC-88023	1CT:2CT	1CT:1CT	1-3/6-8	X	200	12	0.3	1.0	1500
MOX-LAN-TRFRC-88041	1CT:2CT	1CT:1CT	6-8/1-3		112	8	0.3	0.5	1500
MOX-LAN-TRFRC-88048	1CT: 1.414CT	1CT:1CT	6-8/1-3	X	110	15	0.4	1.0	1500
MOX-LAN-TRFRC-88052	2CT:1CT	1CT:1CT	1-3/6-8	X	140	12	0.3	1.0	1500
MOX-LAN-TRFRC-88810	—	1:1 (4X)	1-2/3-4		140	12	0.2	0.4	2000
MOX-LAN-TRFRC-88820	1:1.414 (4X)	—	1-2/3-4 5-6/7-8		140	12	0.2	0.4	2000

Lan Transformer MOX-LAN-TRFRC Surface mount / Thru-hole and DIP packages available

Dimensions:
