| Categories | Ultrasonic Cleaning Transducer |
|---|---|
| Brand Name: | Ours |
| Model Number: | ARS-QXHNQ13550 PZT-4 |
| Certification: | CE and FCC |
| Place of Origin: | ShenZhen China |
| MOQ: | 1PCS |
| Price: | USD11/PCS-USD13/PCS |
| Payment Terms: | T/T, Western Union, PAYPAL |
| Supply Ability: | 1000000pcs |
| Delivery Time: | 2-3 days |
| Packaging Details: | Carton box or plywood box |
| Power: | 100W |
| Frequency: | 28khz ultrasonic transducer |
| Material: | Stainless Steel |
| Size: | 54*36*35mm |
| Piezoceramic: | PZT-4 or PZT-8 |
| Static Capacity: | 4200(pF)±10% |
| Company Info. |
| Ours ultrasonic Co.,Ltd |
| View Contact Details |
| Product List |

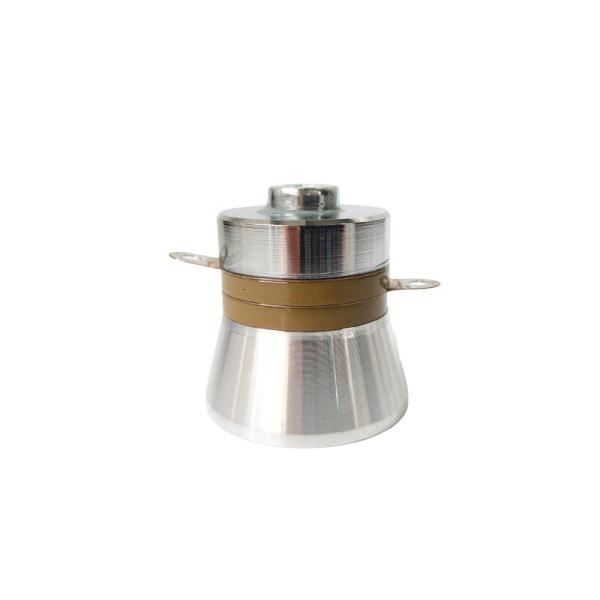

Industrial Ultrasonic Bath Transducers for parts cleaning 28khz
Piezoelectric transducer is the device that realizes the mutual conversion of electric energy and acoustic energy by piezoelectric effect. The ultrasonic transducer provided by our company is made of * * piezoelectric ceramic element, which is carefully designed, processed and tested. It is bolt fastening type and can produce stable ultrasonic when the load changes. It has the characteristics of large amplitude, high electroacoustic conversion rate, small heat output, high reliability and good consistency.
| Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
| ARS-QXHNQ-20100 PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
| ARS-QXHNQ-25100 PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
| ARS-QXHNQ-28100 PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
| ARS-QXHNQ-28100 PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
| ARS-QXHNQ-30100 PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
| ARS-QXHNQ-2560 PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
| ARS-QXHNQ-2860 PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
| ARS-QXHNQ-2850 PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
| ARS-QXHNQ-3360 PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
| ARS-QXHNQ-4060 PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
| ARS-QXHNQ-4060 PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
| ARS-QXHNQ-4050 PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
| ARS-QXHNQ-4050-1 PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
| ARS-QXHNQ-5435 PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
| ARS-QXHNQ-6860 PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
| ARS-QXHNQ-68120 PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
| ARS-QXHNQ-8060 PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
| ARS-QXHNQ-12060 PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
| ARS-QXHNQ-13550 PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
