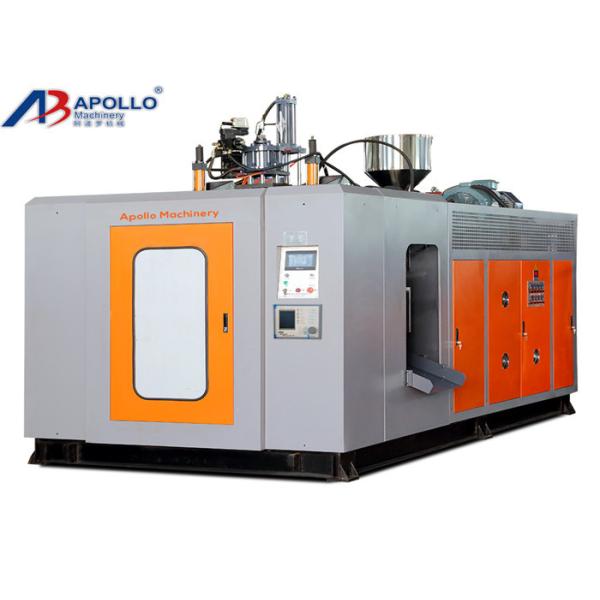

15L plasitc water drum extrusion HDPE full automatic blow molding machine

Our company, ZHANGJIAGANG APOLLO MACHINERY CO., LTD., located in the city of ZHANGJIAGANG, which lies conveniently near to the biggest city of China. Our company was founded in 2007, occupy an area of 8000 square meters and annual production capacity currently stands at more than 100 sets. As a professional manufacturer of automatic blow molding machines, we can make many kinds of hollow plastic products inculding bottles, kettles, jerry cans, vessels, toolboxes, toys, seats and plastic items for automobiles and can be made with capacities from 5ml to 5000L.

This type of blow molding machine ABLB90II can produce milk bottles, cosmetic bottles,medical bottles,plastic balls,tube, plastic cans, containers, tools, toys, and other products.

Basic installation including

• Die head: Center-feed die head
• Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
• Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
• Blowing device: with upper blowing type
• Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
• Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.
• Technical Parameters: ( ABLB90II)

• Max. Product volume8	16 liters
  Screw diameter	90mm
  Screw L/D ratio	24 L/D
  Screw drive power	45KW
  Screw heating capacity	12KW
  No.of heating zone	4 zones
  Output of HDPE	150KG/H
  Oil pump drive power	11 KW
  Clamping force	160KN
  Max.size of mold	530x550mm
  Mold stroke	320-620mm
  Template size	550 X 550mm
  Max.die diameter	200mm
  Blowing pressure	0.6 mpa
  Air Volume	0.9M³/MIN
  Cooling water pressure	0.3mpa
  Water consumption	90L/MIN
  Size of Machine	4.3x2.3x3.0m
  Weight of machine	11ton

  The main components of the machine. ( ABLB90II)

  electronic parts
  Name	Trader
  Micro computer control system	WIRETECH from TAIWAN/MUTISUBISHI
  Temperature Controller	WIRETECH from TAIWAN/MUTISUBISHI
  Auxiliary Relay	OMRON
  contactor	Schneider from France
  Electric motor	Schneider from France Three phase 380V
  Power Source	TAIWAN MEANWELL
  Transducer	ABB from Switzerland
  hydraulic parts
  Name	Trader
  Oil pump	HIGH-TECH
  Valve	YUKEN
  Sealed part	HALLITE
  air control system
  Name	Trader
  Cylinder	AIRTAC
  Air Valve	AIRTAC

Zhangjiagang Apollo Machinery is located in the high-speed developing port city-Zhangjiagang, which is nearby the international big city-Shanghai.

Zhangjiagang Apollo Machinery Co., Ltd. Through nearly 10 years' hard struggle, our company has developed from a small company to a large-sized company. We always put our customers' profit on the first place through providing high quality, responsible prices and considerate after-sales services. We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tubes, tool boxes, and chemical barrels.

Our machinery is suitable for plastic containers from 5ML to 200L and various kinds of plastic materials such as PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, and PETG. So we are confident that we can meet your different demands for plastic blow molding machines. Our products have enjoyed a great reputation in the blow molding machinery industry, being always warmly welcomed by our new and old customers.

Not only do our products sell well in domestic market, but also are exported to overseas markets, such as America: Canada, Mexico, Argentina, Colombia; Europe: the UK, France, Germany, Russia; the Middle East: Saudi Arabia, Oman, Iran, Turkey and other countries of Asia: Japan, Philippines, Myanmar, India and more.

About quality:

1. Our machinery was designed by professional and experienced engineers who have successfully completed over 1000 plastic blow molding machines combined Japanese and European technology.

2. We cooperate with most of famous suppliers to make sure the quality of components.

3. Before shipment, our products must be checked strictly by professional adjustors, chief engineers, and factory directors. We must make sure that our machines go well and also need to get customers' approval. If our customers can not come to our factory to check our machinery in person, our sales representative will be on behalf of our customers to check the machine for them exactly according to our customers' demands.

Our purpose is to keep on researching and developing to improve our quality to meet the high demands for plastic blowing molding machines.
