| Categories | DMR Two Way Radio |
|---|---|
| Brand Name: | SUNTOR |
| Model Number: | CD05HPT |
| Certification: | N/A |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 2550-3500 per set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9999 set per week |
| Delivery Time: | 5-10 days |
| Packaging Details: | Normal package |
| Model: | CD05HPT |
| Transmission distance: | 5KM (we also can provide long transmission distance) |
| TX/RX Weight: | 93G |
| Size: | 76×48×20MM |
| Frequency: | 2402~2482MHz |
| RF Power: | 27dBm（500mw） |
| Transmitting Rate: | Duplex 3Mbps |
| Power Consumption: | TX：7W; RX：6W |
| Key Interface: | Mini High Definition Multimedia Interface×1 Ethernet×1 TTL Serial Port×1 |
| Company Info. |
| Shenzhen Suntor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

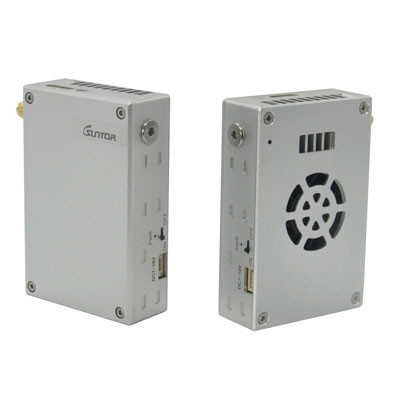

CD05HPT Drone Video Transmitter & Receiver Specifi...
1. Description
CD05HPT is a mini HD Video and Data transmission COFDM system for
UAV. It develops CABAC (H.264+H.265) coding&decoding technology
to
achieve Utra-high resolution(1080P), long distance(air to ground
5km) and low delay(15-30ms) transmission. The system supports
two-way(data&image) communication, adjustable video resolution,
bit rate output with the TPlayer software. It can realize the soft
decoding with low
delay. Meanwhile this SUNTOR series products have small size,
light-weight, low consumption, high stability and high sensitivity.
They are suitable
various environment of different application.
2. Features
3. Parameter
| Wireless | |
| Frequency Range | 2.4GHZ (2402-2482GHZ) |
| Bandwidth | 4Mhz |
| Data Rate | 3 ~ 5Mbps |
| RF Power | 500mW (Air to Ground 5km) |
| Error Detection | LDPC FEC,Video H.264/265 Super Error Correction |
| Latency | ≤15-30ms |
| Receive Sensitivity | -100dBm@4Mhz |
| Video | |
| Video Input | Mini HDMI |
| Ressolution | Ultra HD 1080p/60fps |
| Compressed Format | H.264/H.265 |
| Color Space | 4:2:0(Default),4:2:2/4:4:4(Op.) |
| System | |
| Start-up Time | ≤30s |
| Transmission | Video＋Duplex Control Data |
| Data Protocol | SBUS/TTL/MAVLINK Telemetry |
| Power Supply | DC7 ~ 18V Power Supply |
| Security | AES128 Encryption |
| Interface | |
| RF Antenna | SMA×1 |
| HDMI Interface | Mini HDMI(HDMI Type C)×1 |
| Serial Port Interface | TTL Serial to USB Connector×1 |
| Ethernet Interface | Ethernet to RJ45 Connector×1 |
| Power Input | 2Pin to DC Jack Connector×1 |
| Physical | |
| Dimension | 72x47x19mm |
| Weight | 94g(Transmitter),94g(Receiver) |
| Operating temperature | -40°C ~ ＋85°C |
Packing list : 1*Tx, 1*Rx, 1*Tx Antenna, 1*Rx Antenna, 3*Power
Cable, 3*TTL Data Cable, 3*Ethernet Cable, 3*Antenna Cable,
2*High Definition Multimedia Interface Cable, 1*TPlayer Key,
1*Package Box .
|
